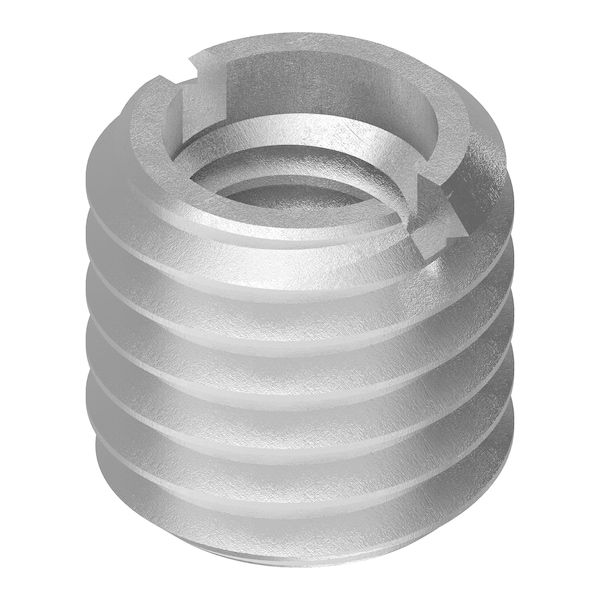

Heavy Wall Self Locking Thread Insert, 5/16"-18 Int Thrd Sz, Steel, 10 PK

  • Mfr # 329-5IC-PK10

  • Zoro # G509228193

CAD Available
product price:  $13.59
/pk 10, $1.36/ea

Key Features

CAD Drawing
Internal Thread Size
5/16"-18
Material
Steel
Overall Length
31/64 in
Insert Diameter
1/2 in
External Thread Size
1/2"-13
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
329-5IC-PK10
Zoro #
G509228193
UPC #
847554005958
Country of Origin
United States

Dimensions

Internal Thread Size
5/16"-18
Overall Length
31/64 in
Insert Diameter
1/2 in
External Thread Size
1/2"-13
Drill Bit Size
27/64 in
Minimum Installation Depth
9/16 in
Maximum Hole Diameter
0.422 in
Compatible Tap Size
1/2"-13

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
Steel
Wall Type
Heavy Wall
Thread Type
UNC
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
78,300 psi
Finish
Black Phosphate
Brinell Hardness
163
Compatible Material
Metal
System of Measurement
Inch
Material Grade/Class
12L14
Compatible with Manufacturer Model Number
500-4
Features
Pre-Applied Adhesive
Internal Thread Fit
2B
External Thread Fit
2A
Thread Direction
Right Hand
Compatible Manufacturer Part Number
500-4
Compatible Manufacturer Model Number
500-4
For Use With Mfr. Model Number
500-4
Compatible with Manufacturer Model No.
500-4
Compatible with Mfr. Model No.
500-4
For Use with Mfr Model Number
500-4
Compatible Pump Manufacturer Part Number
500-4
Compatible Mfr. Model Number
500-4
Tensile Strength
78,300 psi
Series
329
For Manufacturer Part Number
500-4
Compatible with Mfr. Model Number
500-4

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 1/2 In.-13, Drill Bit Size 27/64, External Thread Fit 2A, External Thread Size 1/2 In.-13, Finish Black Phosphate, Insert Diameter 1/2 in, Internal Thread Fit 2B, Internal Thread Size 5/16 In.-18, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.422 in, Minimum Installation Depth 9/16 in, Overall Length 31/64 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
