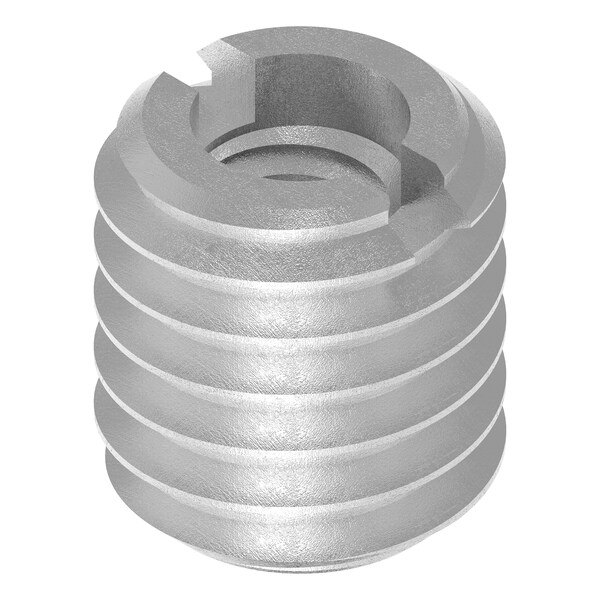

Heavy Wall Self Locking Thread Insert, No. 10-24 Int Thrd Sz, Steel
Mfr # EZ-329-3IC
Zoro # G809228299
CAD Available
product price: $45.19
/eaKey Features
CAD Drawing
Internal Thread Size
#10-24
Material
Steel
Overall Length
13/32 in
Insert Diameter
3/8 in
External Thread Size
3/8"-16
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-329-3IC
Zoro #
G809228299
UPC #
847554010860
Country of Origin
United States
Dimensions
Internal Thread Size
#10-24
Overall Length
13/32 in
Insert Diameter
3/8 in
External Thread Size
3/8"-16
Drill Bit Size
5/16 in
Minimum Installation Depth
15/32 in
Maximum Hole Diameter
0.313 in
Compatible Tap Size
3/8"-16
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 3/8 In.-16, Drill Bit Size 5/16, External Thread Fit 2A, External Thread Size 3/8 In.-16, Finish Black Phosphate, Insert Diameter 3/8 in, Internal Thread Fit 2B, Internal Thread Size #10-24, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.313 in, Minimum Installation Depth 15/32 in, Overall Length 13/32 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Fine
