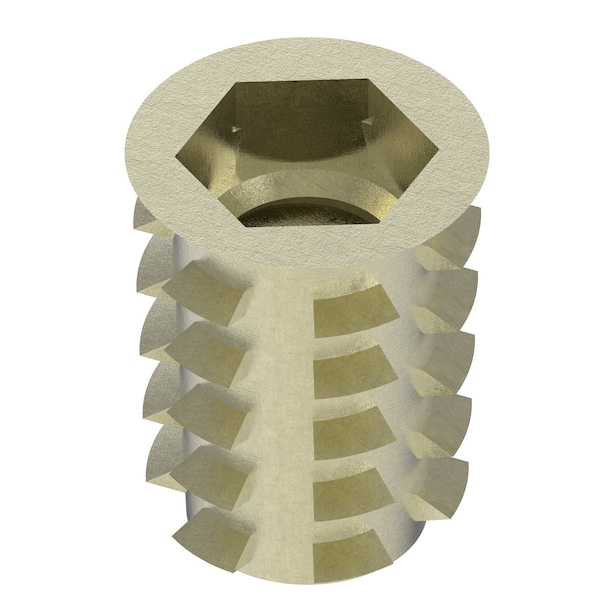

Hex Drive Threaded Insert, 3/8"-16 Int Thrd Sz, 51/64 in L, 39/64 in Dia., Zinc Alloy, Plain, 25 PK
Mfr # 903816-20-PK25
Zoro # G109228159
CAD Available
product price:Â $9.99
/pk 25, $0.40/eaKey Features
CAD Drawing
Insert Diameter
39/64 in
Internal Thread Size
3/8"-16
Material
Zinc Alloy
Finish
Plain
Flange Style
Flanged
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
903816-20-PK25
Zoro #
G109228159
UPC #
847554042649
Country of Origin
Taiwan, Province of China
Dimensions
Insert Diameter
39/64 in
Internal Thread Size
3/8"-16
Overall Length
51/64 in
Drill Bit Size
15/32 in
Drive Size
M10
Minimum Material Thickness
45/64 in
Maximum Hole Diameter
0.469 in
Description
Hex Drive Threaded Insert, System of Measurement Inch, Insert Diameter 39/64 in, Overall Length 51/64 in, Internal Thread Size 3/8 In.-16, Thread Direction Right Hand, Thread Type Coarse, Material Zinc Alloy, Material Grade/Class Zamak 3, Finish Plain, Drive Size M10, Drill Bit Size 15/32 in, Compatible Material Wood, Minimum Material Thickness 45/64 in, Maximum Hole Diameter 0.469 in, Flange Style Flanged, Compatible with Manufacturer Model Number 9200, Features Broad External Thread
