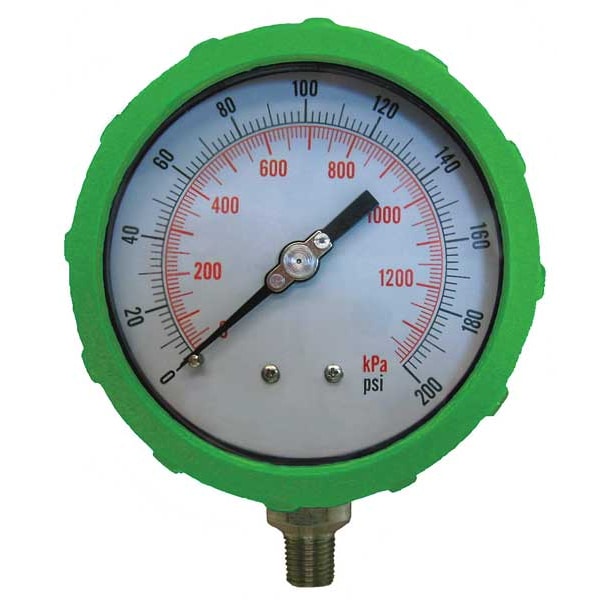

Zoro Select Industrial Pressure Gauge, 0 to 200 psi, 4 in Dial, 1/4 in NPT, Bottom Location 4EFH5 - main
Shop ZORO SELECT

Industrial Pressure Gauge, 0 to 200 psi, 4 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4EFH5

  • Zoro # G0047117

product price:  $24.89
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4EFH5
Zoro #
G0047117
UPC #
190735504857
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Nominal Dial Size
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Polycarbonate
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 1400
Gauge Primary Range Smallest Graduation
2
Gauge Application
Test
For Use With
Compressed Air, Water, and Hydraulic Oil on Process Lines, Compressors, Hydraulics, and Machinery
Case Color
Green
Smallest Graduation
2 psi
Socket Material
Brass
Case Material
ABS Plastic
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Shop By
Closeouts
Secondary Pressure Range
0 to 1,400
Scale Type
Dual
Freeze Resistant Movement
No
Includes Mounting Hardware
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Removable Bezel
No
Pressure Gauge Type
Industrial Pressure Gauge
Cleaned for Oxygen Service
No
Accuracy Scale
Mid-Scale
Pressure Range Type
Pressure
Gauge Case Liquid
None
Includes Calibration Certificate
No
Primary Scale Minor Graduations
1, 2
Dial Color
White
Dry Dampening Feature
None
Secondary Scale Units
kPa
Vibration Resistance
None
Non-Sparking
No
Includes Vent Plug
No
Field Fillable
No
Sensor Material
Bronze
Process Connection Gender
Male
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Green, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
