  5. Industrial Pressure Gauge, 0 to 200 psi, 4 in Dial, 1/4 in NPT, Bottom Location

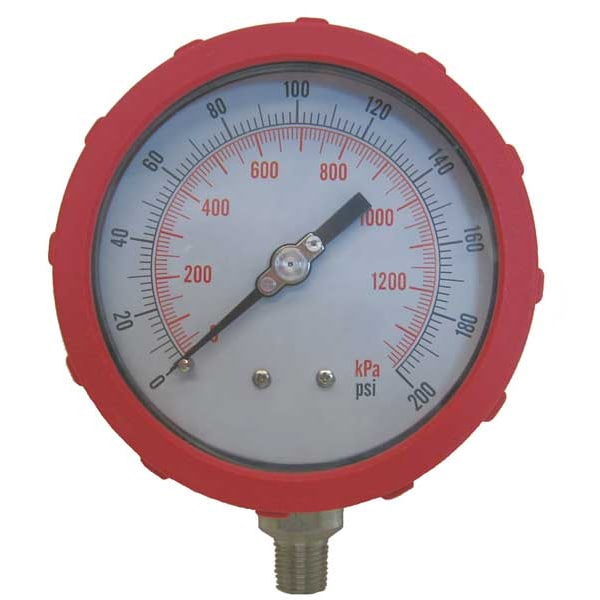

Zoro Select Industrial Pressure Gauge, 0 to 200 psi, 4 in Dial, 1/4 in NPT, Bottom Location 4EFJ4 - main

Industrial Pressure Gauge, 0 to 200 psi, 4 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4EFJ4

  • Zoro # G0047196

product price:  $25.69
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4EFJ4
Zoro #
G0047196
UPC #
190735504932
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Nominal Dial Size
4 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Polycarbonate
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Red
For Use With
Compressed Air, Water, and Hydraulic Oil on Process Lines, Compressors, Hydraulics, and Machinery
Gauge Application
Test
Smallest Graduation
2 psi
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
2
Gauge Secondary Range Values
0 to 1400
Socket Material
Brass
Case Material
ABS Plastic
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Shop By
Closeouts
Gauge Case Liquid
None
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Dial Color
White
Includes Vent Plug
No
Secondary Scale Units
kPa
Dry Dampening Feature
None
Non-Sparking
No
Accuracy Scale
Mid-Scale
Secondary Pressure Range
0 to 1,400
Pressure Gauge Type
Industrial Pressure Gauge
Freeze Resistant Movement
No
Cleaned for Oxygen Service
No
Process Connection Gender
Male
Pressure Range Type
Pressure
Field Fillable
No
Scale Type
Dual
Primary Scale Minor Graduations
1, 2
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Removable Bezel
No
Sensor Material
Bronze
Vibration Resistance
None
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Red, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
