  5. Commercial Pressure Gauge, 0 to 3,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

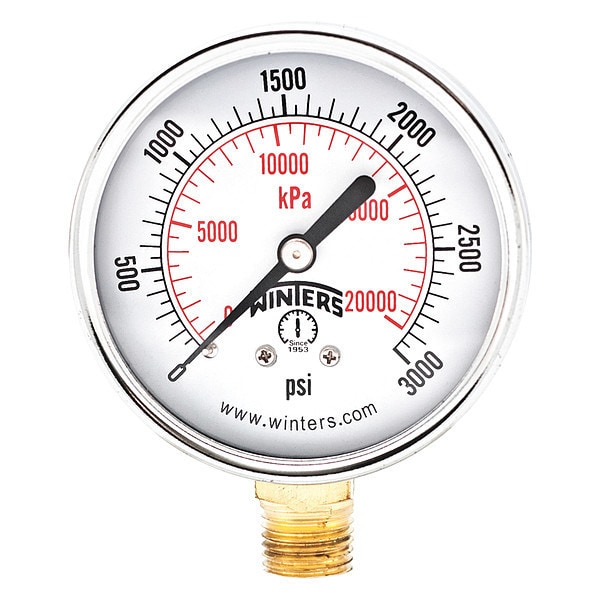

Winters Commercial Pressure Gauge, 0 to 3,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PEM291 - main

Commercial Pressure Gauge, 0 to 3,000 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PEM291

  • Zoro # G1604819

product price:  $7.39
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM291
Zoro #
G1604819
UPC #
628311200751
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Case Depth
1.102 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
2 1/2 in
Case Diameter
2.488 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM
Lens Material
Acrylic
Primary Pressure Range
0 to 3,000
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Socket Material
Brass
Connection Type
MNPT
Smallest Graduation
50 psi/500 kPa
Standards
ANSI/ASME, CRN
Gauge Primary Range Smallest Graduation
100/1000
Gauge Secondary Range Values
0 to 20,000
Gauge Primary Range Numbered Graduations
500/4000
Case Material
Steel
Case Color
Black
Gauge Application
General-Purpose Case
For Use With
Media Compatible with Bronze
Non-Sparking
No
Scale Type
Dual
Removable Bezel
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Pressure Range Type
Pressure
Sensor Type
Bourdon Tube
Dial Face Material
Aluminum
Dry Dampening Feature
None
Process Connection Gender
Male
Bezel Material
Steel
Case Finish
Painted
Gauge Case Liquid
None
Accuracy Grade
ASME B40.100 Grade B
Movement Material
Brass
Secondary Scale Units
kPa
Secondary Pressure Range
0 to 20,000
Pressure Gauge Type
Commercial Pressure Gauge
Compatible Process Media
Non-Clogging, Non-Corroding
Process Temperature Range
-40 Degrees to 150 Degrees F
Includes Vent Plug
No
Accuracy Scale
Mid-Scale
Vibration Resistance
None
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Dial Color
White
Case Construction
Welded Joint
Sensor Material
Phosphor Bronze
Over-Pressure Limit
25% of Full Scale
Freeze Resistant Movement
No
Cleaned for Oxygen Service
No
Pointer Material
Aluminum
Pointer Color
Black
Field Fillable
No
Operating Temperature Range
-40 Degrees to 150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP52
NEMA Enclosure Rating
5
Process Media Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
3,000 psi
Operating Temperature - Maximum
150 Degrees F
Case Liquid
None
Secondary Scale Pressure Measurement - Maximum
20,000 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F

Description

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 3,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No
