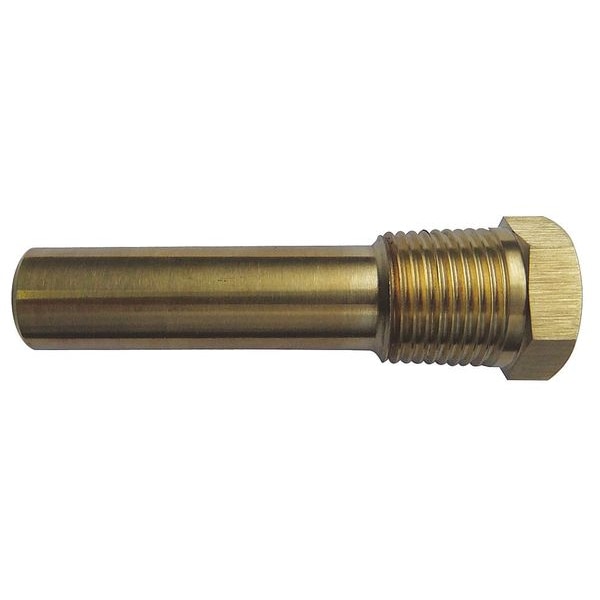

Industrial Thermowell, Brass, 5/8-18 UNF

product price: $7.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Internal Thread Size 5/8-18 UNF
  • Stem Length 3 in
  • Process Connection 1/2 in MNPT
  • Insertion Length 2.94 in
  • Material Brass
See all product information

Product Information

Dimensions

Internal Thread Size 5/8-18 UNF
Stem Length 3 in
Insertion Length 2.94 in
Socket Length 3.25 in
Shank Dia. 0.62 in
Bore Dia. 0.447 in
For Stem Length 2 15/16 in
For Thermometer Thread Size 5/8 in
For Stem Diameter 29/64 in
Thread Size 1/2 in

Details

Item Threaded Thermowell
Process Connection 1/2 in MNPT
Material Brass
Neck Extension 1.06 in
Wrench Allowance 0.31 in
Food Safe No
Maximum Operating Pressure 5,000 psi at 60 Degrees F
Application General Purpose, Sealed Systems
Includes Cap and Chain No
NSF Rated No
Thermowell Type Threaded
Includes Lagging No
Maximum Operating Temperature 150 Degrees F at 1,330 psi, 350 Degrees F at 1,280 psi
Thread Gender Male
Thread Type NPT
For Thermometer Thread Type UNF
For Thermometer Thread Connection 5/8"-18 UNF
Shank Type Straight

Description

Threaded Thermowell, Brass, Shank Type Straight, 1/2 in MNPT, Insertion Length 2 15/16 in, For Stem Length 2 15/16 in, Neck Extension 1 1/16 in, Food Safe No

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
