  11. Inverted Air Cargo Swivel Caster, Nylon, 2-1/2 in

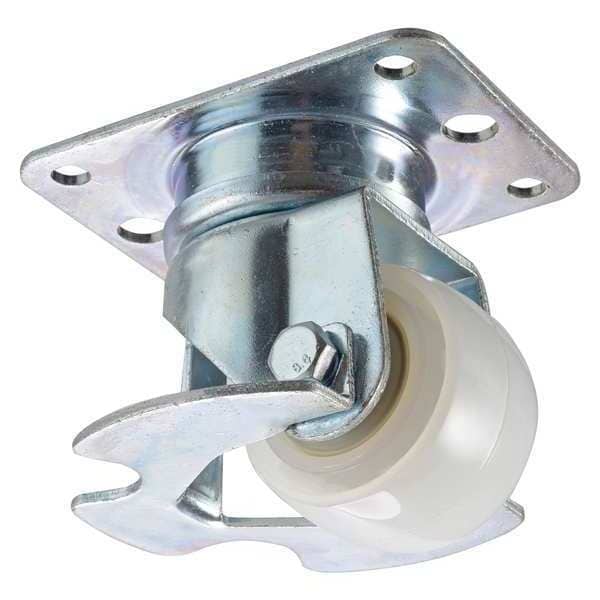

Zoro Select Inverted Air Cargo Swivel Caster, Nylon, 2-1/2 in P19S-N65K-P-001Z - main

Inverted Air Cargo Swivel Caster, Nylon, 2-1/2 in

  • Mfr # P19S-N65K-P-001Z

  • Zoro # G2265453

product price: $28.35
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
2 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P19S-N65K-P-001Z
Zoro #
G2265453
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
2 1/4 in
Wheel Width
1 3/8 in
Mounting Height
3 15/16 in
Mounting Plate Size
3-1/8in x 4-7/16in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
3-3/4in
Swivel Radius
57.5 mm
Bolt Hole Spacing - Width
2.375 in
Mounting Plate Length
111 mm
Overall Wheel Width
1 3/8 in
For Axle Dia.
8 mm
Bolt Hole Spacing - Length
3.375 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
440 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
White
Wheel Hardness Rating
75 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-1/2 in
Inside Bolt Hole Spacing
3-1/2 in
Caster Plate Hole Pattern
H
Caster Temp. Range Available
Yes
Thread Guards
No
Wheel Color
White
Frame Finish
Zinc Plated
Includes
Toe Guard
Application
Aerospace, Air Cargo Decking, Material Handling, Conveyors, Logistics
Replacement Wheel
Mfr. No. 065 NY1L
Caster Stem Type
No Stem/Plate Included
Standards
RoHS, ICWM
Caster Brake Included
No
Tread
Standard
Tread Color
White
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Nylon
Swivel Construction
Kingpin
Includes Thread Guards
No
Extended Lead
No
Series
P19 Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
440 lb
Load Capacity - Maximum
440 lb
Compatible With
065 NY1L
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
0 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-4 Degrees to 176 Degrees F

Description

Swivel, Plate Caster, Load Rating 440 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 1/4 in, Wheel Width 1 3/8 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
