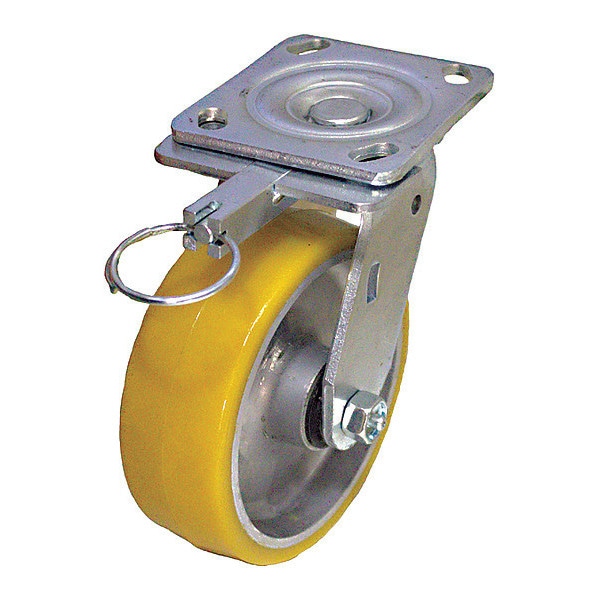

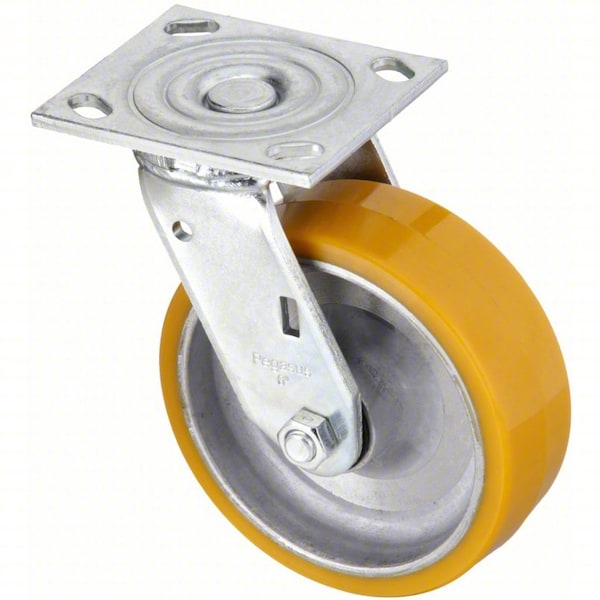

Zoro Select Plate Caster, Swivel, Polyurethane, 7 1/2"H P21S-UA060R-14-DL - main

Plate Caster, Swivel, Polyurethane, 7 1/2"H

  • Mfr # P21S-UA060R-14-DL

  • Zoro # G3574950

product price:  $49.15
/ea

Key Features

Core Color
Silver
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Standards
DIN EN 12532
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-UA060R-14-DL
Zoro #
G3574950
UPC #
-
Country of Origin
China

Dimensions

Mounting Plate Size
4in x 4-1/2in
Wheel Width
2 in
Wheel Dia.
6 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5 in
Overall Height
7-1/2in
Mounting Height
7 1/2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Thickness
1/4in

Details

Core Color
Silver
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Standards
DIN EN 12532
Thread Guards
No
Number of Wheels
1
Caster Frame Material
Steel
Tread
Standard
Item
Swivel Caster with Four Position Swivel Lock
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Swivel Lock Type
Directional Lock
Includes
Directional Lock
System of Measurement
Inch
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Features
Push/Pull Force Reduction
Wheel Color
Yellow
Caster Mounting Type
Plate
Number of Mounting Holes
4
Extended Lead
No
Caster Sub-Type
Swivel
Caster Brake Type
Directional Lock
Wheel/Tread Material
Polyurethane
Wheel Core Material
Aluminum
Load Rating
1250 lb
Load Rating Range
Medium-Duty
Tread Shape
Standard
Wheel Bearing Type
Roller
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Firm
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-UA-060x020/050R
Tread Color
Yellow
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Wheel/Tread Color
Yellow
Series
P21 Series
Load Capacity
1250 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Compatible With
P-UA-060X020/050R
Load Capacity - Maximum
1,250 lb
Wheel Hardness Rating
92 Shore A
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
