  10. /
  11. Jack, Pallet, Adjustable, 21 to 27 In, 48 L
Shop All Pallet Jacks
Zoro Select

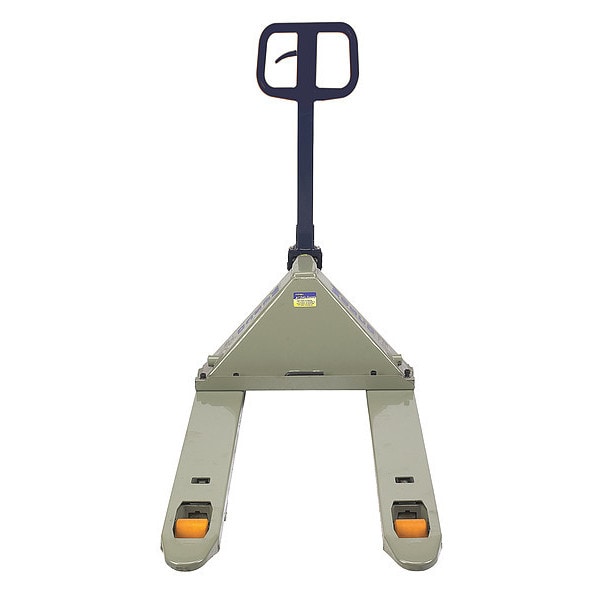

Jack, Pallet, Adjustable, 21 to 27 In, 48 L

product price: $755.99
/ea
Item requires special delivery charges. A $210.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Overall Height 47 in
  • Overall Length 63 in
  • Overall Width 27 in
  • Color Gray
  • Load Capacity 5500 lb
See all product information

Product Information

Dimensions

Overall Height 47 in
Overall Length 63 in
Overall Width 27 in
Fork Length 48in
Fork Width 6 in
Fork Height Raised 7 3/4 in
Main Wheel Size 8 in
Fork Height Lowered 3 in
Width Across Forks 21 in to 27 in
Width Between Forks 9 in to 5 in
Roller Dia. 3"
Strokes To Maximum Lift Height 12
Maximum Lifting Height 8 in
Axle Dia. 3/4 in
Turning Radius 5 ft 10 in
Load Wheel Diameter 3 in
Overall LxWxH 63 in x 27 in x 47 in
Back Rest Height 15 in
Steer Wheel Width 2 in
Handle Height 48 1/2 in
Lifting Height per Pump 1/2 in
Minimum Lifting Height 3 in
Load Wheel Width 3 3/4 in
Steer Wheel Diameter 7 in
Length 61 in
Depth 47 in

Details

Color Gray
Load Capacity 5500 lb
Item Pallet Jack
Wheel Type Tread on Core
Handle Type Ergonomic
Assembled Yes
Steering Arc 180 Degrees
Construction Steel
Roller Material Polyurethane
Includes Adjusting Wrench
Bearings Roller
Pallet Jack Style Standard
Key Pallet Jack Feature Adjustable Forks
Finish Powder Coated
Pallet Jack Operation Manual
Wheel Material Polyurethane
Wheel Base 49 in
Features Pump Overload Bypass
Grease Fittings Yes
Frame Material Steel
Frame Finish Powder Coated
Maximum Incline 8 Degrees
Load Wheel/Tread Material Polyurethane
For Surface Type Concrete
Number of Batteries 0
Maximum Decline 8 Degrees
Weight 180 lb
Load Wheel Bearing Type Roller
Steer Wheel Bearing Type Ball Bearing
Operation Manual
Steer Wheel/Tread Material Polyurethane
Handle Material Rubber Coated
Fork Style Standard
Fork Thickness 2 in
For Pallet Type Open/Closed
Fork Type Adjustable
Adjustment Type Bolt and Wrench

Description

5,500 lb, Fork Style Standard, Fork Type Adjustable, Fork Length 48 in, Fork Width 6 in, Width Across Forks 21 in to 27 in, Width Between Forks 9 in to 5 in, Overall Length 63 in, Overall Width 27 in, Overall Height 47 in, Frame Material Steel, Minimum Lifting Height 3 in, Maximum Lifting Height 8 in, Fork LxW 48 in x 6 in, Overall LxWxH 63 in x 27 in x 47 in
