  9. Key Locking Thread Insert, Heavy Wall, 4 Keys, 5/8"-18 Int Thrd Sz, 7/8"-14 Ext Thrd Sz, 10 PK

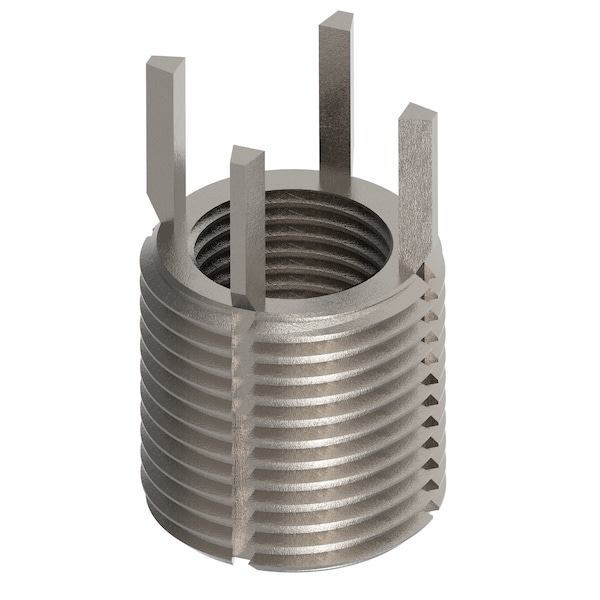

Zoro Select Key Locking Thread Insert, Heavy Wall, 4 Keys, 5/8"-18 Int Thrd Sz, 7/8"-14 Ext Thrd Sz, 10 PK 217-077508 - main

CAD Viewer & Download Files

Key Locking Thread Insert, Heavy Wall, 4 Keys, 5/8"-18 Int Thrd Sz, 7/8"-14 Ext Thrd Sz, 10 PK

  • Mfr # 217-077508

  • Zoro # G810607458

CAD Available
product price: $150.99
/pk 10, $15.10/ea
Free Shipping & Returns

Key Features

CAD Drawing
Internal Thread Size
5/8"-18
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
7/8 in
External Thread Size
7/8"-14
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
217-077508
Zoro #
G810607458
UPC #
-
Country of Origin
United States

Dimensions

Internal Thread Size
5/8"-18
Overall Length
7/8 in
External Thread Size
7/8"-14
Drill Bit Size
13/16 in
Compatible Tap Size
7/8"-14
Minimum Installation Depth
35/64 in
Insert Diameter
7/8 in
Maximum Hole Diameter
0.833 in

Details

CAD Available
Yes
Item
Key Locking Insert
Material
Stainless Steel
Number of Locking Keys
4
Thread Type
Coarse
Wall Type
Heavy Wall
Compatible Material
Metal
Material Grade/Class
18-8
System of Measurement
Inch
Internal Thread Fit
3B
Thread Direction
Right Hand
Series
MS
Features
Self Locking
External Thread Fit
2A
Industry Standards
SAE AS8879
Finish
Plain

Description

Key Locking Insert, System of Measurement Inch, Insert Diameter 7/8 in, Overall Length 7/8 in, Internal Thread Size 5/8 In.-18, Internal Thread Fit 3B, External Thread Size 7/8 In.-14, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size 7/8 In.-14, Drill Bit Size 13/16 in, Minimum Installation Depth 35/64 in, Maximum Hole Diameter 0.833 in
