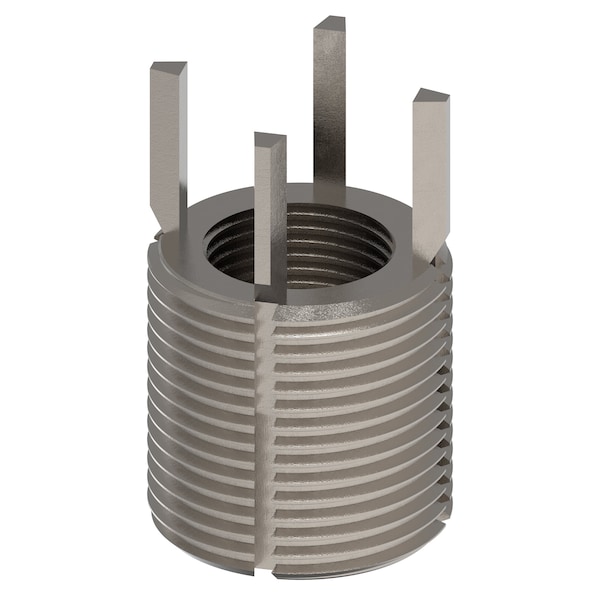

Key Locking Thread Insert, Heavy Wall, 4 Keys, M20-1.50 Int Thrd Sz, M30-2.00 Ext Thrd Sz, 10 PK
Mfr # 217-077573
Zoro # G410607193
CAD Available
product price:Â
$
191.99
/pk 10, $19.20/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
M20-1.50
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
30 mm
External Thread Size
M30-2.00
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 217-077573
- Zoro #
- G410607193
- UPC #
- -
- Country of Origin
- United States
- CAD Available
- Yes
- Item
- Key Locking Insert
- Material
- Stainless Steel
- Number of Locking Keys
- 4
- Thread Type
- Coarse
- Wall Type
- Heavy Wall
- Compatible Material
- Metal
- Features
- Non-Locking
- Series
- MS
- External Thread Fit
- 2A
- Internal Thread Fit
- 3B
- Thread Pitch
- 2 mm
- Finish
- Plain
- Thread Direction
- Right Hand
- Industry Standards
- Fed Std. H28/21, MJ Form
- Material Grade/Class
- 18-8
- System of Measurement
- Metric
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 30 mm, Overall Length 30 mm, Internal Thread Size M20-1.50, Internal Thread Fit 3B, External Thread Size M30-2.00, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M30-2.00, Drill Bit Size 28.10 mm, Minimum Installation Depth 17 1/2 mm, Maximum Hole Diameter 28.13 mm
