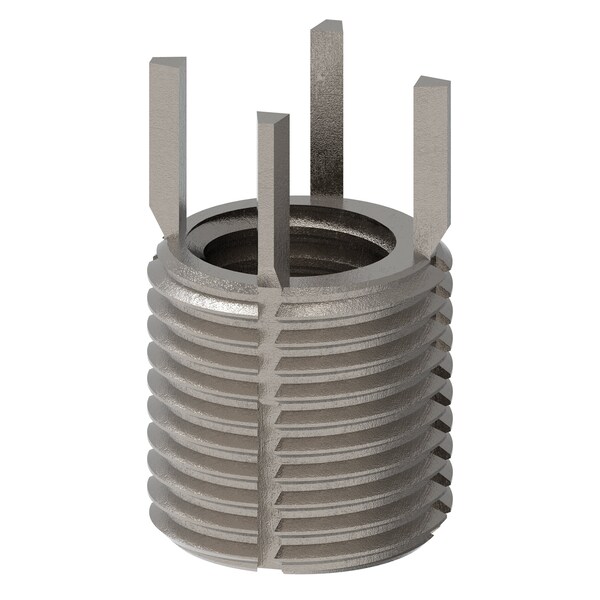

Key Locking Thread Insert, Thin Wall, 4 Keys, M12-1.75 Int Thrd Sz, M16-1.50 Ext Thrd Sz, 10 PK
Mfr # 217-077356
Zoro # G210652409
CAD Available
product price: $195.99
/pk 10, $19.60/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
M12x1.75
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
16 mm
External Thread Size
M16x1.5
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
217-077356
Zoro #
G210652409
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M12x1.75
Overall Length
16 mm
External Thread Size
M16x1.5
Drill Bit Size
14.75 mm
Compatible Tap Size
M16x1.5
Minimum Installation Depth
9 35/64 mm
Insert Diameter
16 mm
Maximum Hole Diameter
14.88 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 16 mm, Overall Length 16 mm, Internal Thread Size M12x1.75, Internal Thread Fit 3B, External Thread Size M16x1.5, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Thin Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M16x1.5, Drill Bit Size 14.75 mm, Minimum Installation Depth 9 35/64 mm, Maximum Hole Diameter 14.88 mm
