  11. Kigpnls Plt Cstr, Swl, Poly, 8 in, 2420 lb, A
Zoro Select Kigpnls Plt Cstr, Swl, Poly, 8 in, 2420 lb, A TSH200PT15T24BD - main

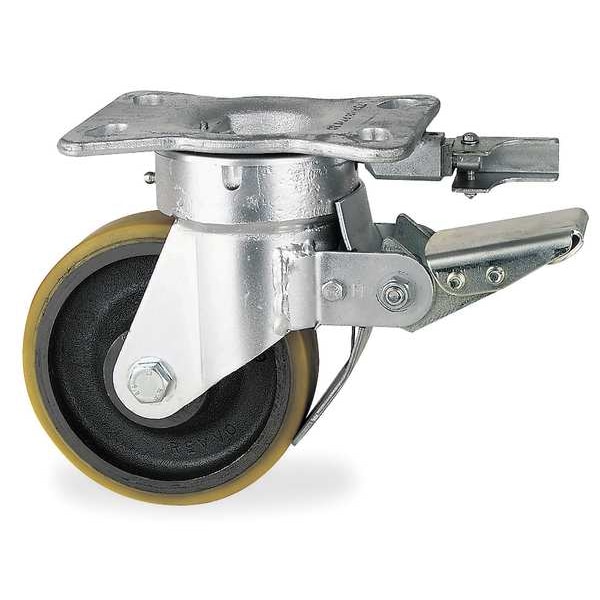

Kigpnls Plt Cstr, Swl, Poly, 8 in, 2420 lb, A

  • Mfr # TSH200PT15T24BD

  • Zoro # G2073714

product price: $256.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Wheel Dia.
8 in
Wheel Width
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TSH200PT15T24BD
Zoro #
G2073714
UPC #
-
Country of Origin
United Kingdom

Dimensions

Wheel Dia.
8 in
Wheel Width
1 1/2 in
Mounting Height
10 1/8 in
Mounting Plate Size
5 3/4 in x 6 9/16 in
Mounting Plate Thickness
9/32 in
Mounting Bolt Dia.
1/2 in
Overall Height
10in
Outside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Width
5 1/4 in
Overall Wheel Width
45 mm
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
6 9/16 in
For Axle Dia.
12 mm

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Load Rating
2400 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Tan
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Application
Kingpinless Casters
Frame Finish
Enamel
Includes
Top Grease Seal
Wheel Color
Tan
Standards
ANSI ICWM
Extended Lead
No
Caster Temp. Range Available
Yes
Caster Brake Included
Yes
Replacement Wheel
Mfr. No. 200 PT15
Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Single Ball
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Iron
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpinless
Includes Thread Guards
No
Load Capacity - Maximum
2,400 lb
Compatible With
200 PT15
Mounting Plate Shape
Rectangle
Brake Location
Face
For Surface Type
Ceramic, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-22 Degrees to 176 Degrees F

Description

Swivel, Plate Caster, Load Rating 2400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Standard
