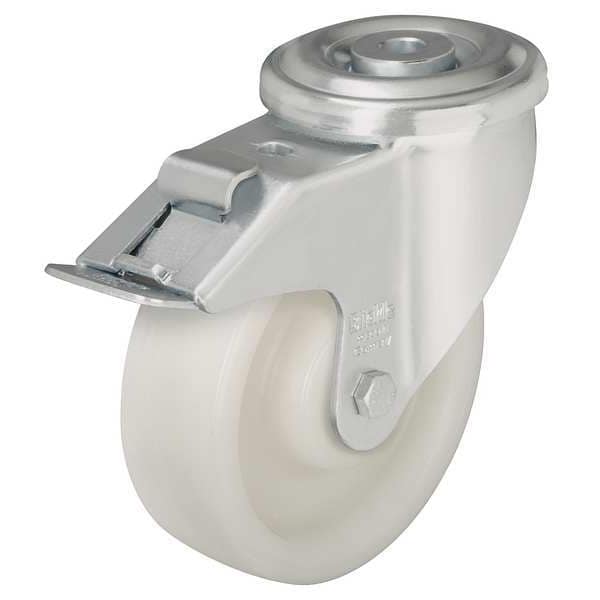

Kingpin Swivel Caster, Nylon, 4 in., 770 lb

  • Mfr # LKR-SPO 100K-FI

  • Zoro # G6412831

product price:
$
66.19
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
770 lb
Wheel Dia.
100 mm
Wheel Width
37 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKR-SPO 100K-FI
Zoro #
G6412831
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
37 mm
Mounting Height
5 in
Mounting Bolt Dia.
M12
Bolt Hole Dia.
1/2 in
Overall Height
130 mm
Stem Dia.
1/2" Bolt Hole
Swivel Radius
95 mm

Details

Item
Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
770 lb
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Caster Brake Type
Total Lock
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
White
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Hollow
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Load Rating Range
Medium Duty
Caster Temp. Range Available
No
Replacement Wheel
Mfr. No. SPO 100/15K
Caster Raceway
Double Ball
Caster Wheel Bearings
Precision Ball
System of Measurement
Inch
Caster Stem Type
Hollow Kingpin
Wheel Color
White
Caster Core Material
Nylon
Caster Wheel/Tread Material
Heavy Duty Nylon
Caster Brake Included
Yes
Extended Lead
No
Caster Swivel Lock Type
Total-Lock
Caster Temp. Range
-25 Degrees To 80 Degrees C
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
70 Shore D
Wheel/Tread Color
White
Load Capacity
350 kg
Tread Color
White
Tread Shape
Standard
Series
LKR Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
ESD Conductive
No
Caster Break Type
Stop Fix Brake (Total Lock)
Includes Thread Guards
No
Caster Mounting Type
Hollow Kingpin
Operating Temperature - Minimum
-5 Degrees F
Wheel Hardness Rating
70 Shore D
Operating Temperature - Maximum
175 Degrees F
Load Capacity - Maximum
770 lb
Caster Features
Corrosion-Resistant, Easy Turn, Maintenance-Free
Compatible Wheel Manufacturer Model Number
SPO 100/15K

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 770 lb Load Rating, 1 Number of Wheels, Ball, 5 in Mounting Height, 3 7/8 in Wheel Dia., 1 1/2 in Wheel Width, Nylon Wheel/Tread Material, 70 Shore D Wheel/Tread Hardness, Hard, Yes Non-Marking
