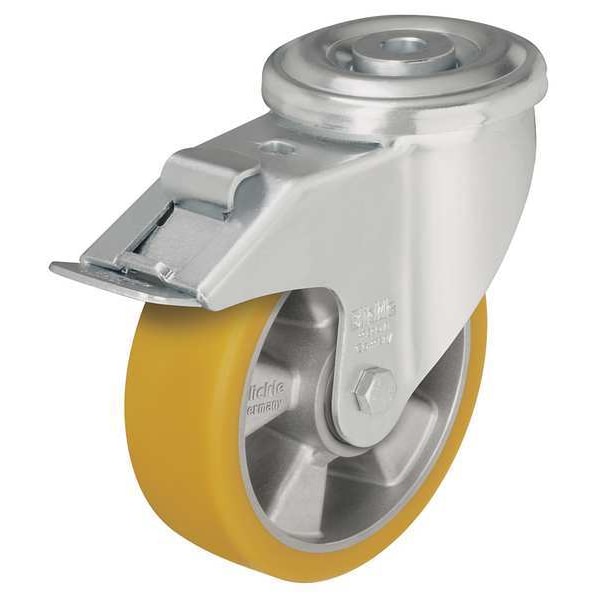

Kingpin Swivel Caster, Polyurethane, 5 in, 770 lb

  • Mfr # LKR-ALTH 125K-FI

  • Zoro # G7080263

product price:  $110.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
770 lb
Wheel Dia.
125 mm
Wheel Width
40 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKR-ALTH 125K-FI
Zoro #
G7080263
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
125 mm
Wheel Width
40 mm
Mounting Height
6 in
Mounting Bolt Dia.
M12
Overall Height
155 mm
Bolt Hole Dia.
1/2 in
Swivel Radius
110.5 mm
Stem Dia.
1/2" Bolt Hole
Tire Thickness
3/8 in

Details

Item
Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
770 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Ball
Caster Brake Type
Total Lock
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Aluminum
Core Color
Silver
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Hollow
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Core Material
Aluminum
Caster Brake Included
Yes
Wheel Color
Yellow
Caster Temp. Range Available
No
Caster Stem Type
Hollow Kingpin
System of Measurement
Inch
Caster Load Rating Range
Medium Duty
Caster Wheel Bearings
Precision Ball
Caster Wheel/Tread Material
Extrathane Polyurethane
Replacement Wheel
Mfr. No. ALTH 125/15K
Caster Raceway
Double Ball
Extended Lead
No
Caster Temp. Range
-25 Degrees To 70 Degrees C
Caster Swivel Lock Type
Total-Lock
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
92 Shore A
Wheel/Tread Color
Silver
Tread Shape
Standard
Includes Thread Guards
No
ESD Conductive
No
Caster Break Type
Stop Fix Brake (Total Lock)
Load Capacity
350 kg
Tread
Standard
Tread Color
Light Brown
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LKR Series
Caster Mounting Type
Hollow Kingpin
Operating Temperature - Minimum
-5 Degrees F
Load Capacity - Maximum
770 lb
Operating Temperature - Maximum
160 Degrees F
Caster Features
Corrosion-Resistant, Maintenance-Free
Compatible Wheel Manufacturer Model Number
ALTH 125/15K
Wheel Hardness Rating
92 Shore A

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 770 lb Load Rating, 1 Number of Wheels, Ball, 6 in Mounting Height, 4 7/8 in Wheel Dia., 1 5/8 in Wheel Width, Polyurethane Wheel/Tread Material, 92 Shore A Wheel/Tread Hardness, Firm, Yes Non-Marking
