  6. Kingpin Swivel Caster, Therm Rubber, 5 in., 265 lb.

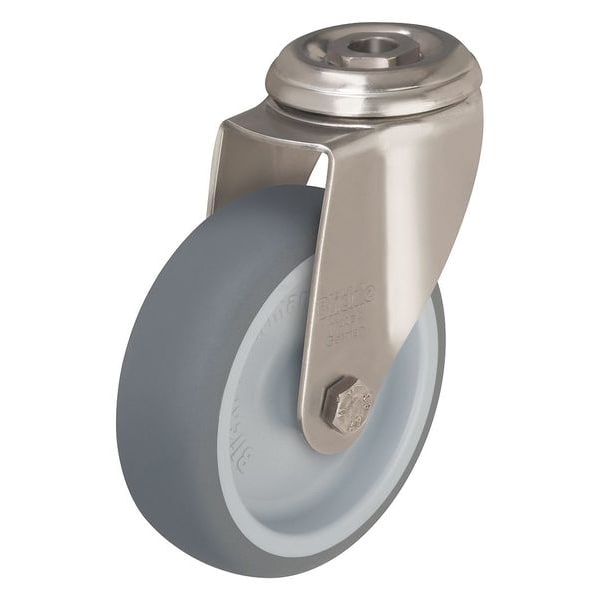

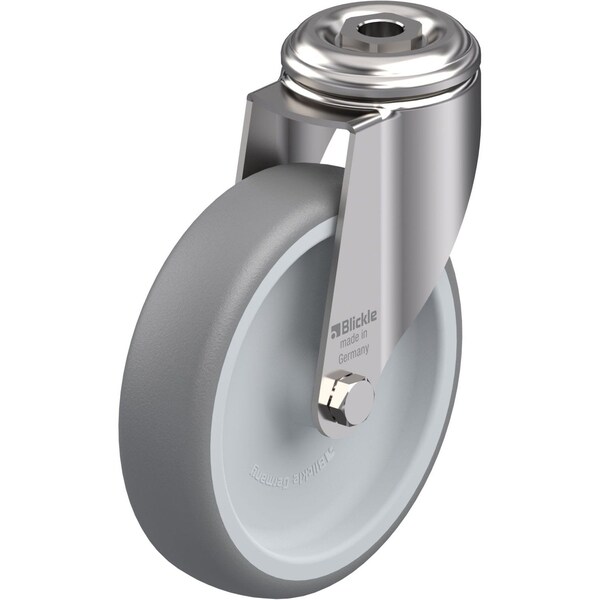

Zoro Select Kingpin Swivel Caster, Therm Rubber, 5 in., 265 lb. LKRXA-TPA 126G - main

Kingpin Swivel Caster, Therm Rubber, 5 in., 265 lb.

  • Mfr # LKRXA-TPA 126G

  • Zoro # G0493118

product price:  $36.65
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
265 lb
Wheel Dia.
5 in
Wheel Width
1-1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKRXA-TPA 126G
Zoro #
G0493118
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1-1/4 in
Mounting Height
6 3/16 in
Mounting Bolt Dia.
1/2 in
Bolt Hole Dia.
1/2 in
Overall Height
6-1/4 in
Stem Dia.
1/2" Bolt Hole
Swivel Radius
4-1/16 in
Tire Thickness
5/16 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
265 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Plain
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Wheel Core Material
Polypropylene
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Corrosion Resistant, Hollow, Semi-Soft Tread
Standards
RoHS, ICWM
Caster Wheel/Tread Material
Thermoplastic Rubber
System of Measurement
Inch
Caster Brake Included
No
Caster Temp. Range Available
No
Wheel Color
Gray
Caster Wheel Bearings
Plain
Caster Load Rating Range
Medium Duty
Caster Core Material
Nylon
Caster Stem Type
Hollow Kingpin
Caster Raceway
Double Ball
Replacement Wheel
Mfr. No. TPA 126/12G
Caster Swivel Lock Type
No Lock Included
Extended Lead
No
Caster Temp. Range
-4 Degrees To 140 Degrees F
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
85 Shore A
Wheel/Tread Color
Gray
Tread
Standard
Load Capacity
265 lb
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Hollow Kingpin
Caster Break Type
No Brake Included
Includes Thread Guards
No
ESD Conductive
No
Tread Color
Gray
Tread Shape
Standard
Series
LKRXA Series
Wheel Hardness Rating
85 Shore A
Operating Temperature - Minimum
-5 Degrees F
Load Capacity - Maximum
265 lb
Operating Temperature - Maximum
140 Degrees F
Caster Features
Corrosion-Resistant
Compatible Wheel Manufacturer Model Number
TPA 126/12G

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Stainless Steel Caster Frame Material, Stainless Steel Frame Finish, 0 to 299 lb Load Rating Range, 265 lb Load Rating, 1 Number of Wheels, Plain, 6 1/10 in Mounting Height, 4 7/8 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
