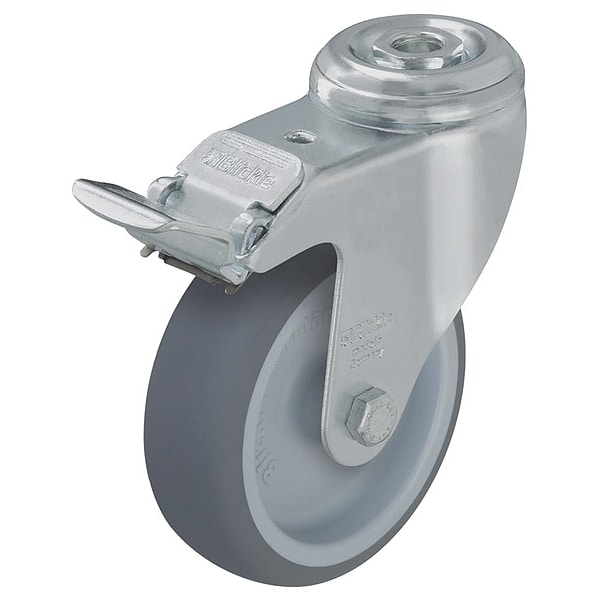

Kingpin Swivel Caster, Thrm Rubber, 4 in, 242 lb, Gry

  • Mfr # LKRXA-TPA 101G-FI

  • Zoro # G0493020

product price:
$
52.59
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
240 lb
Wheel Dia.
4 in
Wheel Width
1 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKRXA-TPA 101G-FI
Zoro #
G0493020
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
6 1/10 in
Mounting Bolt Dia.
1/2 in
Overall Height
5-1/4 in
Bolt Hole Dia.
1/2 in
Swivel Radius
3-9/16 in
Stem Dia.
1/2" Bolt Hole
Tire Thickness
3/16 in

Details

Item
Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
240 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Plain
Caster Brake Type
Total Lock
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Wheel Core Material
Polypropylene
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Corrosion Resistant, Hollow, Semi-Soft Tread
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Stem Type
Hollow Kingpin
System of Measurement
Inch
Caster Raceway
Double Ball
Caster Temp. Range Available
No
Caster Wheel Bearings
Plain
Caster Brake Included
Yes
Caster Core Material
Polypropylene
Replacement Wheel
Mfr. No. TPA 101/12G
Caster Load Rating Range
Medium Duty
Wheel Color
Gray
Caster Temp. Range
-4 Degrees To 140 Degrees F
Extended Lead
No
Caster Swivel Lock Type
Total-Lock
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
85 Shore A
Wheel/Tread Color
Gray
Tread
Standard
Load Capacity
245 lb
Caster Mounting Type
Hollow Kingpin
Tread Color
Gray
Caster Break Type
Stop Fix Brake (Total Lock)
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
ESD Conductive
No
Includes Thread Guards
No
Series
LKRXA Series
Load Capacity - Maximum
240 lb
Operating Temperature - Maximum
140 Degrees F
Wheel Hardness Rating
85 Shore A
Compatible Wheel Manufacturer Model Number
TPA 101/12G
Operating Temperature - Minimum
-5 Degrees F
Caster Features
Corrosion-Resistant

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Stainless Steel Caster Frame Material, Stainless Steel Frame Finish, 0 to 299 lb Load Rating Range, 240 lb Load Rating, 1 Number of Wheels, Plain, 6 1/10 in Mounting Height, 3 7/8 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
