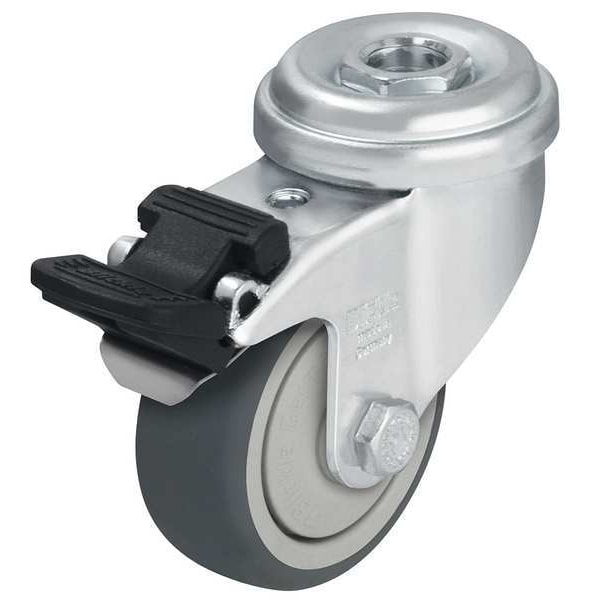

Kingpin Swivel Cster, Thrm Rubber, 2 in., 110 lb.

product price: $9.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Sub-Type Swivel
  • Caster Product Group Swivel Caster With Brake
  • Load Rating 110 lb
  • Wheel Dia. 2 in
  • Wheel Width 3/4 in
See all product information

Product Information

Dimensions

Wheel Dia. 2 in
Wheel Width 3/4 in
Mounting Height 2 3/4 in
Mounting Bolt Dia. 3/8 in
Overall Height 2-3/4 in
Bolt Hole Dia. 7/16 in
Swivel Radius 50 mm
Stem Dia. 7/16" Bolt Hole

Details

Item Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type Swivel
Caster Product Group Swivel Caster With Brake
Load Rating 110 lb
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Hardness Rating Soft
Wheel Bearing Type Precision Ball
Caster Brake Type Total Lock Brake
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Polypropylene
Core Color Gray
Application Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features Hollow
Standards RoHS, ICWM
Includes Stop-Fix Total-Lock Brake
Caster Temp. Range Available No
Wheel Color Gray
System of Measurement Metric
Caster Brake Included Yes
Caster Raceway Double Ball
Caster Wheel/Tread Material Thermoplastic Rubber
Caster Load Rating Range Light Duty
Replacement Wheel Mfr. No. TPA 50/6K-FK
Caster Core Material Polypropylene
Caster Stem Type Hollow Kingpin
Caster Wheel Bearings Precision Ball
Extended Lead No
Caster Temp. Range -4 Degrees To 140 Degrees F
Caster Swivel Lock Type Total-Lock
Swivel Raceway Type Double Ball
Wheel/Tread Hardness 85 Shore A
Wheel/Tread Color Gray
Caster Mounting Type Hollow Kingpin
ESD Conductive No
Series LRA Series
Includes Thread Guards Yes
Resistant To Very High Chemical Resistance To Many Aggressive Substances
Caster Break Type Stop Fix Brake (Total Lock)
Tread Color Gray
Tread Standard
Load Capacity 110 lb
Tread Shape Standard

Description

Low-Profile Bolt-Hole Caster, 7/16 in Bolt Hole Dia., 7/16 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 110 lb Load Rating, 1 Number of Wheels, Precision Ball, 2 3/4 in Mounting Height, 2 in Wheel Dia., 3/4 in Wheel Width, Thermoplastic Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
