  6. Kingpin Swivl Castr, Rubr, 4 in, 330 lb, Gry

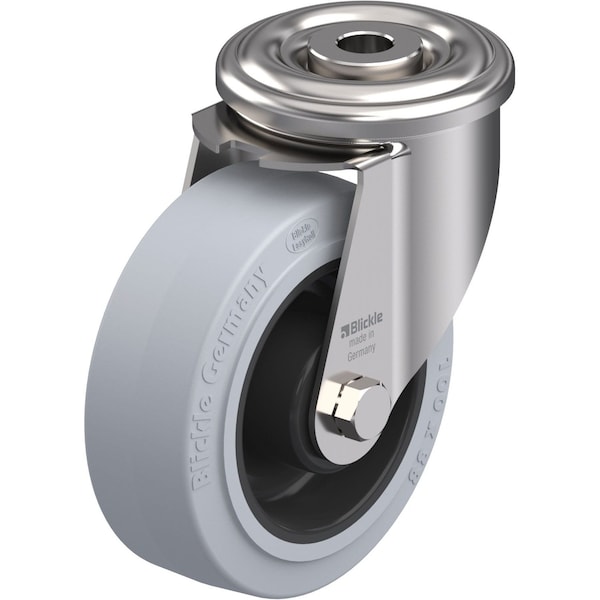

Zoro Select Kingpin Swivl Castr, Rubr, 4 in, 330 lb, Gry LEXR-POEV 100XR-SG - main

Kingpin Swivl Castr, Rubr, 4 in, 330 lb, Gry

  • Mfr # LEXR-POEV 100XR-SG

  • Zoro # G0493145

product price:  $60.45
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
330 lb
Wheel Dia.
100 mm
Wheel Width
38 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LEXR-POEV 100XR-SG
Zoro #
G0493145
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
38 mm
Mounting Height
4 7/8 in
Mounting Bolt Dia.
M12
Bolt Hole Dia.
1/2 in
Overall Height
125 mm
Swivel Radius
86 mm
Stem Dia.
1/2" Bolt Hole
Tire Thickness
7/16 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
330 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Roller
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Wheel Core Material
Nylon
Core Color
Black
Application
Retail, Industrial, Commercial
Features
Corrosion Resistant, Hollow, Soft Tread
Standards
RoHS, ICWM
Caster Core Material
Nylon
System of Measurement
Metric
Caster Brake Included
No
Caster Load Rating Range
Medium Duty
Caster Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Wheel Bearings
Roller
Replacement Wheel
Mfr. No. POEV 100/12XR-SG
Caster Raceway
Double Ball
Wheel Color
Gray
Caster Stem Type
Hollow Kingpin
Caster Temp. Range Available
No
Caster Swivel Lock Type
No Lock Included
Extended Lead
No
Caster Temp. Range
-15 Degrees To 175 Degrees F
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
65 Shore A
Wheel/Tread Color
Black
Load Capacity
150 kg
Caster Break Type
No Brake Included
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Includes Thread Guards
No
Caster Mounting Type
Hollow Kingpin
ESD Conductive
No
Tread
Standard
Series
LEXR Series
Tread Shape
Standard
Tread Color
Gray
Operating Temperature - Minimum
-15 Degrees F
Wheel Hardness Rating
65 Shore A
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
330 lb
Compatible Wheel Manufacturer Model Number
POEV 100/12XR-SG
Operating Temperature - Maximum
175 Degrees F

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Stainless Steel Caster Frame Material, Stainless Steel Frame Finish, 300 to 999 lb Load Rating Range, 330 lb Load Rating, 1 Number of Wheels, Roller, 4 4/5 in Mounting Height, 3 7/8 in Wheel Dia., 1 1/2 in Wheel Width, Rubber Wheel/Tread Material, 65 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
