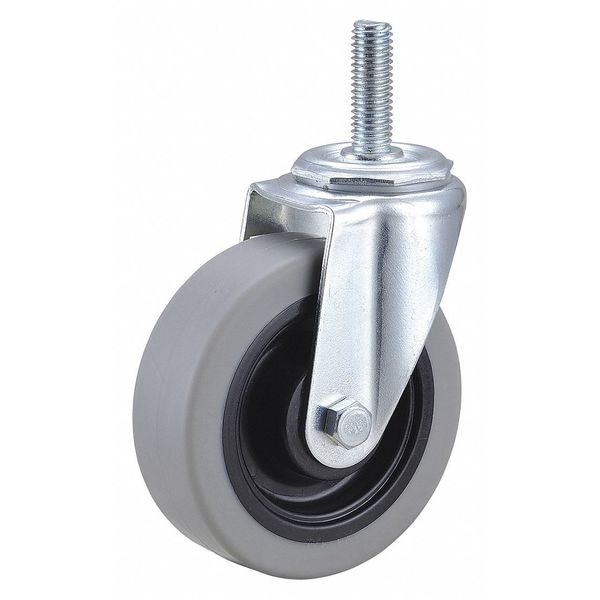

Swivel Stem Caster, TPR, 4 in., 300 lb.

  • Mfr # 32J891

  • Zoro # G4825317


product price: $12.39
/ea

Key Features

Caster Stem Type
Threaded
Tread Shape
Standard
Wheel Width
1 1/4 in
Mounting Height
4 13/16 in
Load Rating
300 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
32J891
Zoro #
G4825317
UPC #
190735902653
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Mounting Height
4 13/16 in
Stem Length
1 1/2 in
Thread Size
1/2"-13
Wheel Dia.
4 in
Stem Dia.
1/2 in
Caster Thread Size
1/2-13
Overall Height
4 13/16 in
Caster Stem Size
1/2"-13 x 1-1/2 in

Details

Item
Stem Caster
Caster Stem Type
Threaded
Tread Shape
Standard
Load Rating
300 lb
Load Rating Range
300 to 999 lb
Wheel/Tread Material
Rubber
Application
Equipment Carts, Fixtures, Furniture, Institutional Equipment, Medical Equipment
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Delrin
Number of Wheels
1
Standards
ANSI ICWM
Caster Raceway
Double Ball
Caster Brake Included
No
Replacement Wheel
26Y352
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Core Material
Polyolefin
Caster Temp. Range Available
Yes
Core Color
Black
Caster Temp. Range
-40 Degrees to 175 Degrees F
Caster Wheel Bearings
Delrin
Frame Finish
Zinc Plated
Caster Product Group
Swivel Caster
Wheel Color
Gray
Caster Sub-Type
Swivel
Caster Load Rating Range
Light-Medium Duty
Operating Temperature Range
-40 Degrees to 175 Degrees F
Swivel Raceway Type
Double Ball
Wheel Core Material
Plastic
Wheel/Tread Color
Gray
Load Capacity - Maximum
300 lb
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Stem Caster, Swivel Caster, 300 lb Load Rating, 300 to 999 lb, 4 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 4 13/16 in Mounting Height, Delrin, 1/2 In.-13 x 1-1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
