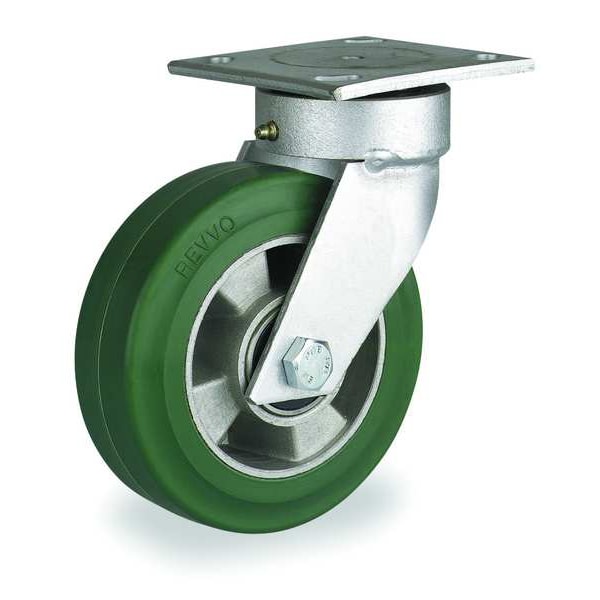

Kingpinless Plate Caster, Swivel, Rubber, 8 in, 880 lb

  • Mfr # TSK 200 GR2H
  • Zoro # G1224544
product price:
$
133.99
/ea
Free Shipping & Returns

Key Features

Caster Frame Material
Steel
Caster Brake Included
No
Load Rating
880 lb
Frame Finish
Zinc Plated
Overall Height
9-1/2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TSK 200 GR2H
Zoro #
G1224544
UPC #
-
Country of Origin
United Kingdom

Dimensions

Overall Height
9-1/2"
Mounting Bolt Dia.
3/8 in
Wheel Width
1 5/8 in
Wheel Dia.
8 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Length
4 1/2 in
Overall Wheel Width
42 mm
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
12 mm
Mounting Plate Width
4 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
1/4 in

Details

Item
Plate Caster
Caster Frame Material
Steel
Caster Brake Included
No
Load Rating
880 lb
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Temp. Range Available
Yes
Core Color
Silver
Outside Bolt Hole Spacing
3 in x 3-5/8 in
Application
Kingpinless Casters
Includes
Top Grease Seal
Non-Marking
No
Caster Plate Hole Pattern
B
Thread Guards
No
Standards
ANSI ICWM
Replacement Wheel
Mfr. No. 200 GR2H
Wheel Color
Green
Extended Lead
No
Inside Bolt Hole Spacing
2-5/8 in x 3 in
Caster Brake Type
No Brake
Wheel Core Material
Aluminum
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Swivel Construction
Kingpinless
Wheel Bearing Type
Ball
Swivel Raceway Type
Single Ball
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Wheel/Tread Material
Rubber
Wheel/Tread Color
Green
Wheel Hardness Rating
70 Shore A
Compatible With
200 GR2H
Load Capacity - Maximum
880 lb
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Ceramic, Tile, Vinyl, Wood
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
155 Degrees F
Operating Temperature Range
-40 Degrees to 158 Degrees F

Description

Swivel, Plate Caster, Load Rating 880 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 1 5/8 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
