  11. Rigid Plate Castr, Cast Irn, 8 in., 1250 lb
Shop All Plate Casters
Zoro Select

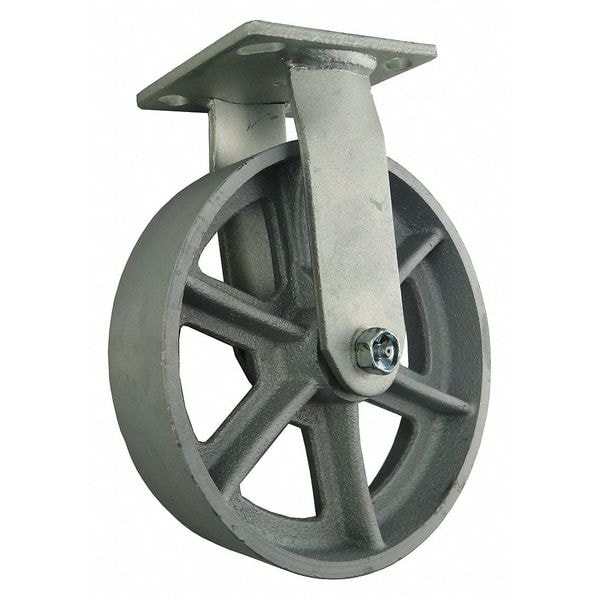

Rigid Plate Castr, Cast Irn, 8 in., 1250 lb

original price: $31.15
8% off
new price: $28.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Sub-Type Rigid
  • Caster Load Rating Range Medium-Duty
  • Caster Product Group Rigid Caster
  • Load Rating 1250 lb
See all product information

Product Information

Dimensions

Wheel Dia. 8 in
Wheel Width 2 in
Overall Height 9-1/2"
Mounting Height 9 1/2 in
Mounting Plate Size 4 in x 4 1/2 in
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4" x 4-1/2"
Plate Size 4" x 4-1/2"

Details

Item Standard Plate Caster
Caster Brake Included No
Caster Sub-Type Rigid
Caster Load Rating Range Medium-Duty
Caster Product Group Rigid Caster
Load Rating 1250 lb
Caster Wheel Shape Standard
Caster Wheel/Tread Material Cast Iron
Wheel/Tread Material Iron
Wheel/Tread Hardness Rating Extra Hard
Wheel Bearing Type Roller
Mounting Plate Bolt Hole Pattern B
Inside Bolt Hole Spacing 3 in x 3 in
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Cast Iron
Core Color Gray
Standards ICWM
Includes Spanner Bushing
Caster Temp. Range Available No
Caster Plate Hole Pattern B
Caster Core Material Cast Iron
Caster Wheel Bearings Roller
Plate Thickness 1/4"
Caster Plate Thickness 1/4"
Caster Swivel Lock Type No Lock Included
Plate Caster Bolt Hole Pattern B
Frame Material Steel
Thread Guards No
Wheel Color Gray
Includes Thread Guards No
Swivel Construction Kingpinless
Tread Shape Standard
Load Rating Range 1000 to 2999 lb
Wheel/Tread Color Gray

Description

Rigid, Standard Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
