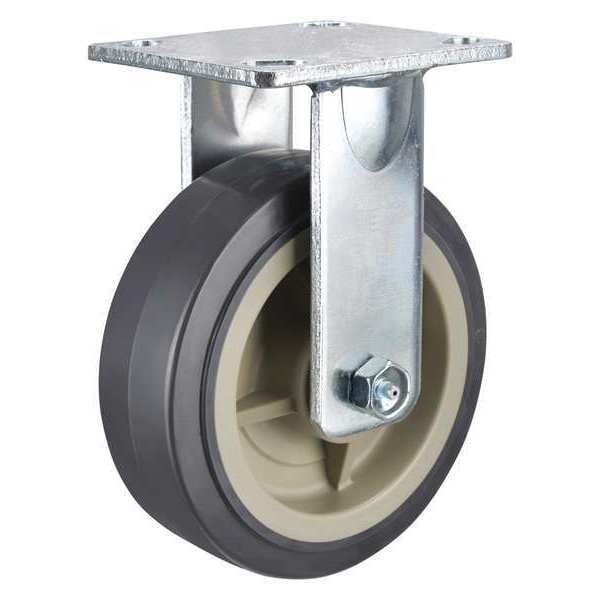

Zoro Select Kingpinless Rgd Caster, Polyurthn, 900 lb P21R-UP060R-14 - main

Kingpinless Rgd Caster, Polyurthn, 900 lb

  • Mfr # P21R-UP060R-14

  • Zoro # G2498246

product price:  $39.19
/ea

Key Features

Extended Lead
No
Load Rating
900 lb
Caster Brake Included
No
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-UP060R-14
Zoro #
G2498246
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Overall Height
7-1/2in
Mounting Bolt Dia.
3/8 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in

Details

Extended Lead
No
Load Rating
900 lb
Caster Brake Included
No
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Non-Marking
Yes
Replacement Wheel
Mfr. No. P-UP-060x020/050R
Number of Wheels
1
Wheel Color
Gray
Caster Frame Material
Steel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Gray
Thread Guards
No
Standards
ANSI ICWM
Item
Rigid Caster
Caster Plate Hole Pattern
B
Number of Mounting Holes
4
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Hard
Caster Brake Type
No Brake
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Bearing Type
Roller
Wheel Core Material
Polypropylene
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Tread
Standard
Tread Color
Gray
Load Capacity
900 lb
Caster Mounting Type
Plate
ESD Conductive
No
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
System of Measurement
Inch
Compatible With
P-UP-060X020/050R
Wheel Hardness Rating
55 Shore D
Load Capacity - Maximum
900 lb
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 900 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
