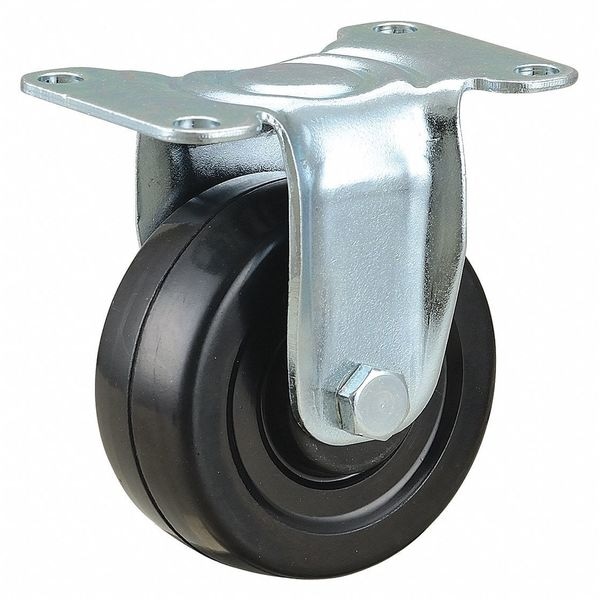

Plate Caster, 3" Wheel Dia., 198 lb., Black

product price: $10.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Rigid
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Rubber
See all product information

Product Information

Dimensions

Overall Height 3-3/4"
Wheel Dia. 3 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Caster Plate Size 2-3/8" x 3-5/8"
Mounting Bolt Dia. 5/16 in
Mounting Height 3 3/4 in
Mounting Plate Size 2 3/8 in x 3 5/8 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Duty
Caster Sub-Type Rigid
Caster Wheel Shape Standard
Caster Wheel/Tread Material Rubber
Load Rating 195 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Plate Hole Pattern D
Caster Swivel Lock Type No Lock Included
Inside Bolt Hole Spacing 1-3/4 in x 3 in
Frame Finish Zinc Plated
Caster Product Group Rigid Caster
Wheel Color Black
Application General Purpose
Caster Plate Thickness 3/32"
Caster Min. Temp. -40 Degrees F
Non-Marking No
Standards ANSI/ICWM
Outside Bolt Hole Spacing 1-3/4 in x 3 in
Caster Temp. Range Available No
Caster Max. Temp. 155 Degrees F
Caster Wheel Bearings Plain
Core Color Black
Extended Lead No
Caster Frame Material Steel
Thread Guards No
Plate Caster Bolt Hole Pattern D
Caster Core Material Rubber
Durometer 85 Shore A
Item Standard Plate Caster
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Includes Thread Guards No
Load Rating Range 0 to 299 lb
Number of Mounting Holes 4
Swivel Construction Kingpinless
Wheel Core Material Rubber
Wheel/Tread Hardness 85 Shore A
Mounting Plate Bolt Hole Pattern D
Wheel/Tread Hardness Rating Soft
Tread Shape Standard
Wheel Bearing Type Plain
Wheel/Tread Material Rubber
Wheel/Tread Color Black

Description

Rigid, Standard Plate Caster, Load Rating 195 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
