  11. Kingpinless Swivel Caster, 600 lb, Gray

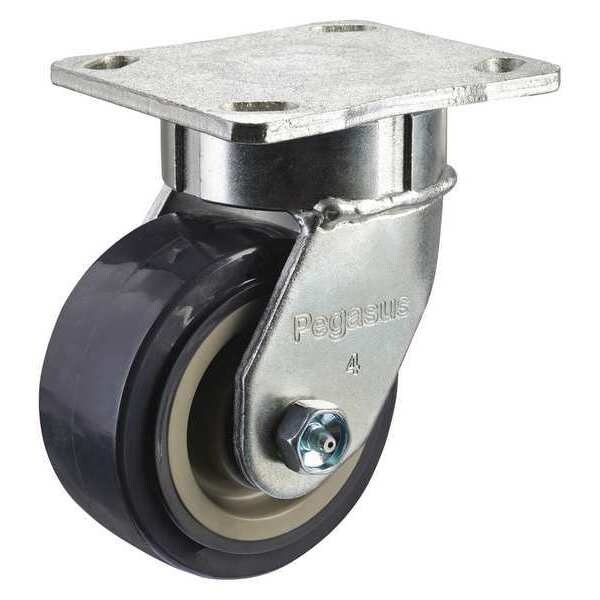

Zoro Select Kingpinless Swivel Caster, 600 lb, Gray P25S-UP040R-14 - main

Kingpinless Swivel Caster, 600 lb, Gray

  • Mfr # P25S-UP040R-14

  • Zoro # G1887785

product price: $43.29
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P25S-UP040R-14
Zoro #
G1887785
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/16 in
Overall Height
5-5/8in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in
Bolt Hole Spacing - Length
2.625 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in

Details

Item
Kingpinless Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
600 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Gray
Wheel Hardness Rating
55 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Wheel Color
Gray
Extended Lead
No
Thread Guards
No
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-UP-040x020/050R
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Kingpinless Single Ball
Swivel Construction
Kingpinless
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Load Rating Range
Medium Duty
Series
P25 Series
Load Capacity
600 lb
Accessories
Optional: P-DL25-14 (Directional Lock)
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Gray
ESD Conductive
No
Load Capacity - Maximum
600 lb
Compatible With
P-UP-040X020/050R
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
