  6. NSF-Listed Plate Caster, 250 lb. Load, Gray Wheel

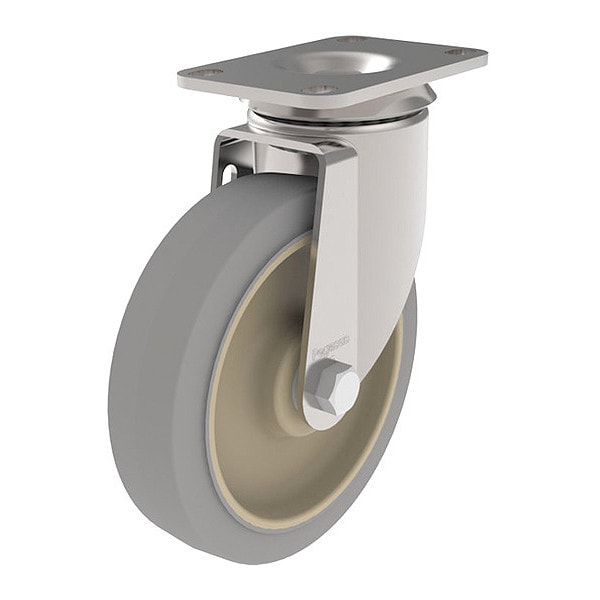

Zoro Select NSF-Listed Plate Caster, 250 lb. Load, Gray Wheel P12S-PRP035B-12 - main

NSF-Listed Plate Caster, 250 lb. Load, Gray Wheel

  • Mfr # P12S-PRP035B-12

  • Zoro # G5611343

product price:  $9.99
/ea

Key Features

Frame Finish
Zinc Plated
Load Rating
250 lb
Standards
ANSI ICWM, NSF Listed
Features
Noise Reduction
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-PRP035B-12
Zoro #
G5611343
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 1/2 in
Mounting Bolt Dia.
5/16 in
Overall Height
4-11/16in
Wheel Width
1 1/4 in
Swivel Radius
3 in
Stem Dia.
No Stem
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
4 11/16 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Thickness
1/8in
Outside Slot Spacing - Width
1.75 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Length
2 1/2 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in

Details

Frame Finish
Zinc Plated
Load Rating
250 lb
Standards
ANSI ICWM, NSF Listed
Features
Noise Reduction
Thread Guards
No
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Item
Swivel Caster
Core Color
Gray
Extended Lead
No
Caster Sub-Type
Swivel
Caster Brake Included
No
Number of Wheels
1
Caster Plate Hole Pattern
C
Includes
Complete Caster
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Non-Marking
Yes
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Wheel Color
Gray
Caster Brake Type
No Brake
Caster Stem Type
No Stem/Plate Included
Replacement Wheel
Mfr. No. P-PRP-035x013/038B
Tread Shape
Standard
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Load Rating Range
Light-Duty
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Wheel/Tread Material
Thermoplastic Rubber
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Gray
System of Measurement
Inch
Tread Color
Gray
Tread
Standard
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P12 Series
ESD Conductive
No
Load Capacity
250 lb
Load Capacity - Maximum
250 lb
Wheel Hardness Rating
90 Shore A
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Caster Features
Debris-Resistant
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
