  11. Kingpinless Swivel Caster, Ductile Iron, 10in, 4100lb
Zoro Select Kingpinless Swivel Caster, Ductile Iron, 10in, 4100lb P27S-D100R-16 - main

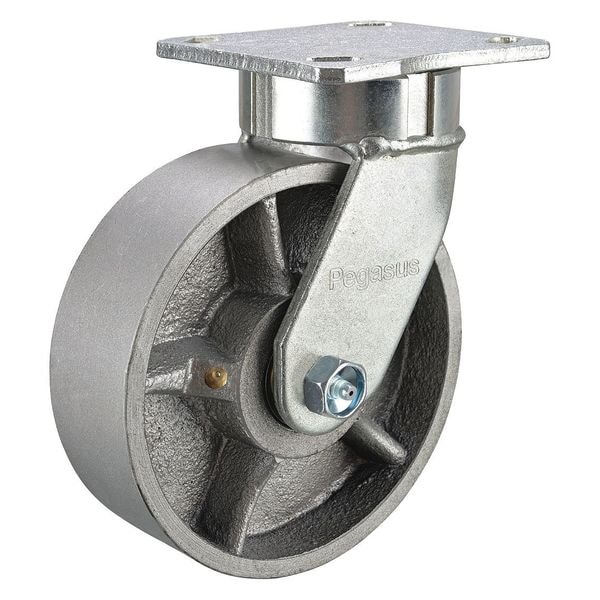

Kingpinless Swivel Caster, Ductile Iron, 10in, 4100lb

  • Mfr # P27S-D100R-16

  • Zoro # G0468702

product price: $145.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Ductile Iron
Caster Brake Type
No Brake
Wheel Dia.
10 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P27S-D100R-16
Zoro #
G0468702
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
10 in
Wheel Width
3 in
Mounting Height
11 1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
8-3/8 in
Overall Height
11-1/2in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
3 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Length
4.938 in
Bolt Hole Spacing - Length
2.438 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Length
6 1/4 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in

Details

Item
Kingpinless Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Ductile Iron
Caster Brake Type
No Brake
Load Rating
4100 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
145 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Thread Guards
No
Extended Lead
No
Replacement Wheel
Mfr. No. P-D-100x030/075R
Caster Temp. Range Available
Yes
Caster Brake Included
No
Standards
RoHS, ICWM
Wheel Color
Black
Includes
Complete Caster
Frame Finish
Zinc Plated
Application
Retail, Industrial, Commercial
Wheel Core Material
Ductile Iron
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Extra Hard
Swivel Construction
Kingpinless
Load Rating Range
Heavy Duty
Swivel Raceway Type
Kingpinless Single Ball
Load Capacity
6000 lb
Tread Color
Black
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: P-DL27-16 (Directional Lock)
ESD Conductive
No
Series
P27 Series
Compatible With
FR1050116G
Load Capacity - Maximum
4,100 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Operating Temperature Range
Up To 800 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Swivel, Plate Caster, Load Rating 4100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
