  11. Plate Caster, 220 lb. Load Rating, Swivel

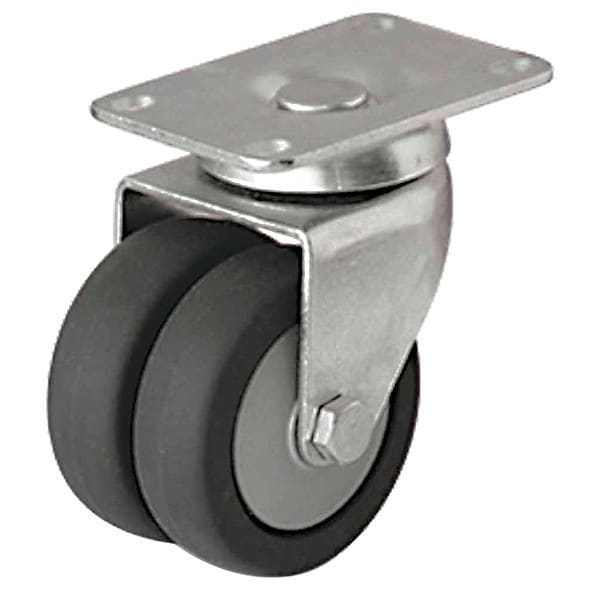

Zoro Select Plate Caster, 220 lb. Load Rating, Swivel P9S-RP030K-P - main

Plate Caster, 220 lb. Load Rating, Swivel

  • Mfr # P9S-RP030K-P

  • Zoro # G6627061

product price: $20.49
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P9S-RP030K-P
Zoro #
G6627061
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
29/32 in
Mounting Height
4 1/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
5/16 in
Swivel Radius
2-9/16 in
Overall Height
4-1/16in
Inside Slot Spacing - Length
2.75 in
Bolt Hole Spacing - Length
1.75 in
Overall Wheel Width
29/32 in
Outside Slot Spacing - Length
3 in
Mounting Plate Width
2 1/2 in
For Axle Dia.
5/16 in
Mounting Plate Length
3 5/8 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
220 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
2
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
D
Wheel Color
Gray
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Caster Brake Included
No
Standards
RoHS, ICWM
Extended Lead
No
Thread Guards
Yes
Features
Noise Reduction, Reduced Swivel Force
Includes
Thread Guards
Application
Retail, Industrial, Commercial
Includes Thread Guards
Yes
Load Rating Range
Light-Duty
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Operating Temperature Range
-15 Degrees to 160 Degrees F
Wheel Core Material
Polypropylene
Load Capacity
220 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Series
P9 Series
Tread Color
Gray
Load Capacity - Maximum
220 lb
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 220 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 29/32 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
