  6. Kingpnls Plt Cstr, Swvl, Poly, 8", 2400 lb
Zoro Select Kingpnls Plt Cstr, Swvl, Poly, 8", 2400 lb TSH 200 PT15-ISO - main

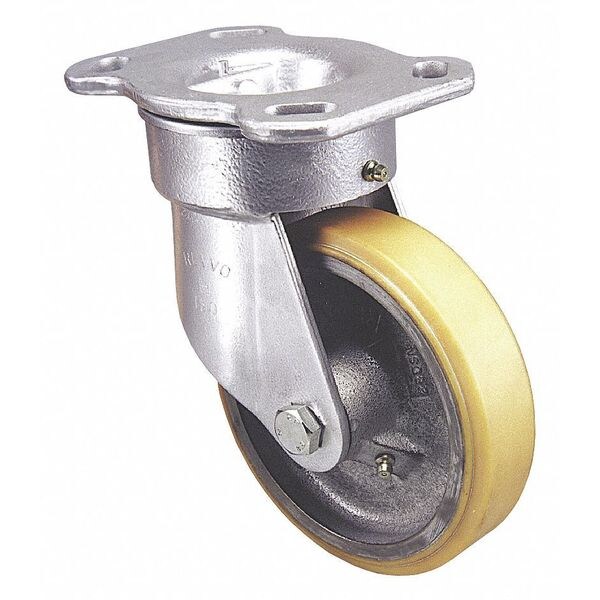

Kingpnls Plt Cstr, Swvl, Poly, 8", 2400 lb

  • Mfr # TSH 200 PT15-ISO

  • Zoro # G0727153

product price:  $204.99
/ea
Free Shipping & Returns

Key Features

Mounting Bolt Dia.
13/32 in
Wheel Width
1 3/4 in
Extended Lead
No
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TSH 200 PT15-ISO
Zoro #
G0727153
UPC #
-
Country of Origin
United Kingdom

Dimensions

Mounting Bolt Dia.
13/32 in
Wheel Width
1 3/4 in
Wheel Dia.
8 in
Overall Height
10in
Mounting Plate Size
4 5/16 in x 5 7/8 in
Mounting Plate Thickness
1/4in

Details

Item
Plate Caster
Extended Lead
No
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Standards
ISO 9001
Features
Metric Top Plate
Non-Marking
Yes
Replacement Wheel
5VF41
Load Rating
2400 lb
Caster Frame Material
Steel
Core Color
Gray
Frame Finish
Zinc Plated
Thread Guards
No
Inside Bolt Hole Spacing
2 3/8 in x 3 1/8 in
Application
Material Handling Carts
Outside Bolt Hole Spacing
4 1/8 in x 4 3/4 in
Wheel Color
Tan
Caster Sub-Type
Kingpinless Swivel
Number of Wheels
1
Caster Brake Included
No
Caster Brake Type
No Lock Included
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Load Rating Range
Medium
Wheel Core Material
Cast Iron
Swivel Raceway Type
Single Ball
Wheel/Tread Material
Polyurethane
Wheel Bearing Type
Roller
Wheel Hardness Rating
97 Shore A
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Kingpinless Swivel, Plate Caster, Load Rating 2400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 1 3/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Tread Shape Standard
