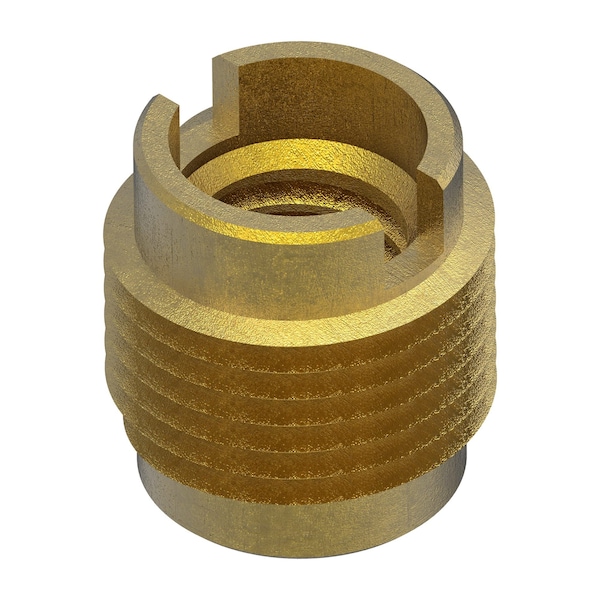

Knife Thread Insert, M10-1.50 Int Thrd Sz, 15.875 mm L, 12.7 mm Dia., Brass, Plain
Mfr # EZ-400-M10
Zoro # G609228222
CAD Available
product price: $41.15
/eaKey Features
CAD Drawing
Insert Diameter
12.7 mm
Material
Brass
Overall Length
15.875 mm
Finish
Plain
Material Grade/Class
C3604
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-400-M10
Zoro #
G609228222
UPC #
847554011102
Country of Origin
Taiwan, Province of China
Dimensions
Internal Thread Size
M10-1.50
Insert Diameter
12.7 mm
Overall Length
15.875 mm
Drill Bit Size
33/64 in
Minimum Material Thickness
19-21/32 mm
Drive Size
33/64 in
Maximum Hole Diameter
13.106 mm
Description
Knife Thread Insert, System of Measurement Metric, Insert Diameter 12.7 mm, Overall Length 15.875 mm, Internal Thread Size M10-1.50, Thread Direction Right Hand, Thread Type Coarse, Material Brass, Material Grade/Class C3604, Finish Plain, Drive Type Slotted, Drill Bit Size 33/64 in, Compatible Material Wood, Minimum Material Thickness 19 21/32 mm, Maximum Hole Diameter 13.106 mm, Compatible with Manufacturer Model Number DT-M10, Includes (5) Drive Tool, Drill, Threaded Insert
