CAD

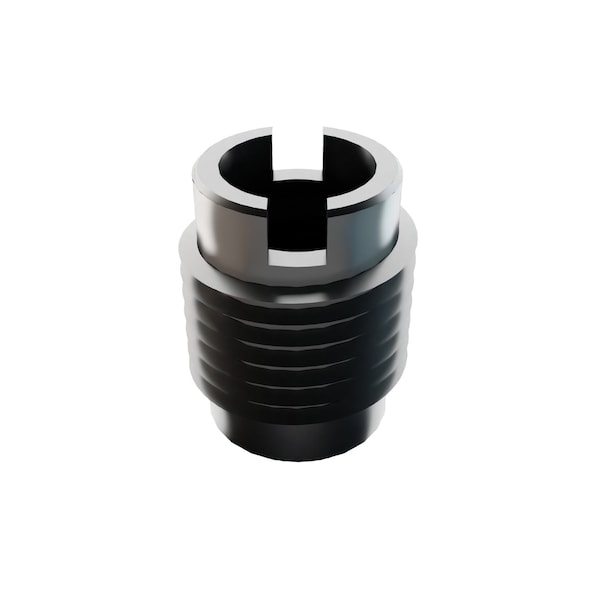

Knife Thread Insert, M8-1.25 Int Thrd Sz, 15.875 mm L, 12.7 mm Dia., 18-8 Stainless Steel, Plain
- Mfr # 400-M8-CR-PK5
- Zoro # G409228231
CAD Available
product price:Â
$
16.35
/pk of 5, $3.27/ea
Key Features
CAD Drawing
Insert Diameter
12.7 mm
Material
18-8 Stainless Steel
Overall Length
15.875 mm
Finish
Plain
Material Grade/Class
18-8
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 400-M8-CR-PK5
- Zoro #
- G409228231
- UPC #
- 847554011102
- Country of Origin
- Taiwan, Province of China
Dimensions
- Internal Thread Size
- M8-1.25
- Insert Diameter
- 12.7 mm
- Overall Length
- 15.875 mm
- Drill Bit Size
- 33/64 in
- Minimum Material Thickness
- 19.66 mm
- Drive Size
- 33/64 in
- Maximum Hole Diameter
- 13.106 mm
- Minimum Installation Depth
- 16 21/32 mm
- Wire Rope Length
- 15.875 mm
- Length
- 15.875 mm
- Hole Diameter - Maximum
- 13.1 mm
Description
Knife-Thread Insert, System of Measurement Metric, Insert Diameter 12.7 mm, Overall Length 15.88 mm, Internal Thread Size M8x1.25, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Drive Type Slotted, Drill Bit Size 33/64 in, Compatible Material Wood, Minimum Material Thickness 19.66 mm, Maximum Hole Diameter 13.106 mm, Compatible with Manufacturer Model Number DT-M8, Installation Method Drive Tool, Screwdriver
