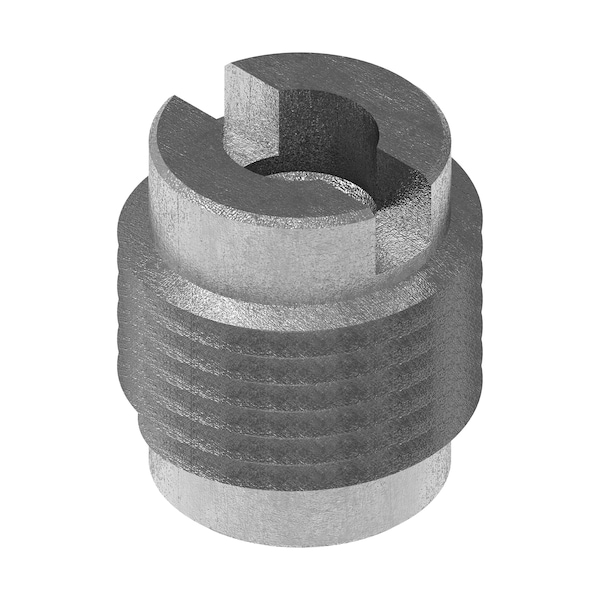

Knife Thread Insert, M5-0.80 Int Thrd Sz, 12.7 mm L, 9.525 mm Dia., 18-8 SS, Plain, 10 PK
Mfr # 400-M5-CR-PK10
Zoro # G709228252
CAD Available
product price: $24.79
/pk 10, $2.48/eaKey Features
CAD Drawing
Insert Diameter
9.525 mm
Material
18-8 Stainless Steel
Overall Length
12.7 mm
Finish
Plain
Thread Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
400-M5-CR-PK10
Zoro #
G709228252
UPC #
847554011102
Country of Origin
Taiwan, Province of China
Dimensions
Internal Thread Size
M5-0.80
Insert Diameter
9.525 mm
Overall Length
12.7 mm
Drill Bit Size
25/64 in
Minimum Material Thickness
14-29/32 mm
Drive Size
25/64 in
Minimum Installation Depth
13 31/64 mm
Maximum Hole Diameter
9.931 mm
Description
Knife Thread Insert, System of Measurement Metric, Insert Diameter 9.525 mm, Overall Length 12.7 mm, Internal Thread Size M5-0.80, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Drive Type Slotted, Drill Bit Size 25/64 in, Compatible Material Wood, Minimum Material Thickness 14 29/32 mm, Maximum Hole Diameter 9.931 mm, Compatible with Manufacturer Model Number 500-2, Installation Method Drive Tool, Screwdriver
