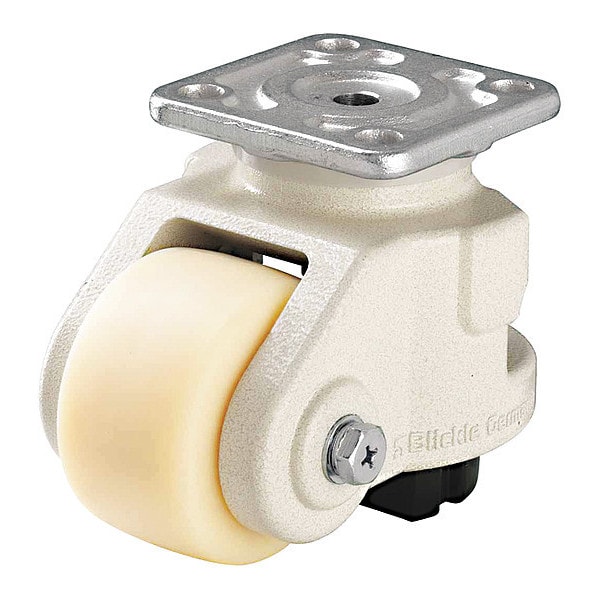

Leveling Caster, 4400lb. Load, White Wheel

  • Mfr # HRSP-GSPO 90G
  • Zoro # G6307362
product price:
$
311.99
/ea
Free Shipping & Returns

Key Features

Mounting Bolt Dia.
1/2 in
Caster Thread Size
M8
Outside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Frame Finish
Powder Coated
Operating Position
Rear
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HRSP-GSPO 90G
Zoro #
G6307362
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
1/2 in
Caster Thread Size
M8
Overall Height
5-1/8"
Stem Dia.
No Stem
Wheel Width
2 3/16 in
Wheel Dia.
3 9/16 in
Maximum Leveling Height
5 15/16 in
Mounting Height
5 1/8 in
Swivel Radius
115 mm
Mounting Plate Size
100 mm x 100 mm
Retracted Height
130 mm
Mounting Plate Thickness
1/4 in
Bolt Hole Spacing - Width
2.75 in
Mounting Plate Length
3 15/16 in
For Axle Dia.
10 mm
Overall Wheel Width
2 3/16 in
Bolt Hole Spacing - Length
2.75 in
Fits Chest Size
Push/Pull Force Reduction

Details

Outside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Frame Finish
Powder Coated
Operating Position
Rear
Non-Marking
Yes
Caster Mounting Type
Plate
Caster Brake Type
Leveling Pad
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
D
Caster Stem Type
No Stem/Plate Included
Standards
DIN EN, ANSI ICWM, ISO 9001
Item
Plate Caster
Inside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Wheel Color
White
Features
Push/Pull Force Reduction
Foot/Pad Material
Rubber
Caster Brake Included
No
Caster Sub-Type
Swivel
Core Color
White
Load Rating
4400 lb
System of Measurement
Inch
Application
Used For Leveling Applications
Tread
Standard
Includes
Leveling Foot
Tread Color
Natural Beige
Number of Wheels
1
Includes Thread Guards
No
Number of Mounting Holes
4
Tread Shape
Standard
Adjustment Style
Nut
Wheel/Tread Material
Nylon
Wheel Core Material
Nylon
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Construction
Kingpin
Wheel Bearing Type
Plain
Caster Frame Material
Aluminum
Load Rating Range
Heavy-Duty
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Single Ball
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
HRSP Series
ESD Conductive
No
Load Capacity
2000 kg
Wheel Hardness Rating
80 Shore D
Load Capacity - Maximum
4,410 lb
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Square
Wheel Core Type
Solid

Description

Swivel, Plate Caster, Load Rating 4400 lb, Wheel Dia. 3 9/16 in, Wheel Width 2 3/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Leveling Pad, Tread Shape Standard
