  5. Low Pressure Gauge, 0 to 10 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

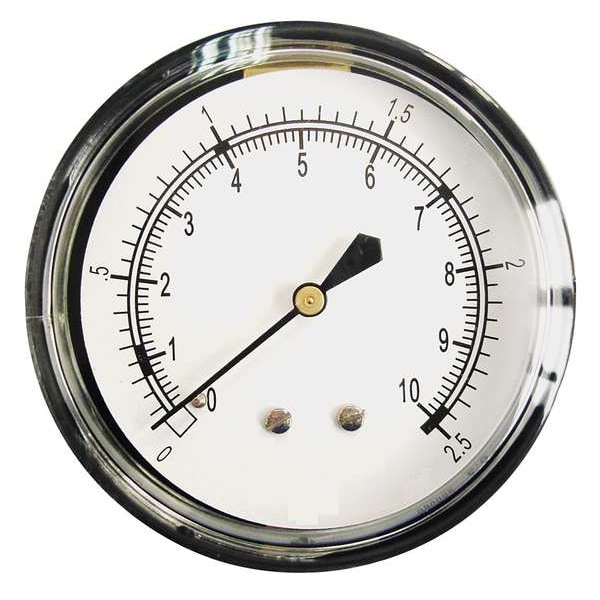

Zoro Select Low Pressure Gauge, 0 to 10 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location 18C798 - main

Low Pressure Gauge, 0 to 10 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # 18C798

  • Zoro # G4739305

product price:  $26.49
/ea

Key Features

Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
18C798
Zoro #
G4739305
UPC #
190735393826
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in

Details

Item
Low Pressure Gauge
Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Pressure Detection
Gauge Case Material
Steel
Series
YE65Z
Lens Material
Polycarbonate
Primary Pressure Range
0 to 10
Primary Scale Units
in wc
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Case Color
Black
Gauge Application
For Inert Gases
Gauge Primary Range Smallest Graduation
0.1
For Use With
Non-Explosive Gas That Do Not Crystalize And Corrode Copper Alloy
Smallest Graduation
0.1 in wc
Calibration Certificate Included
No
Socket Material
Copper Alloy HPb59-1
Case Material
Steel
Wetted Materials
Copper
Connection Type
MNPT
Dial Color
White
Scale Type
Single
Vibration Resistance
None
Ambient Operating Temperature Range
-40 Degrees to 160 Degrees F
Field Fillable
No
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Accuracy Scale
Full Scale
Sensor Type
Diaphragm
Freeze Resistant Movement
No
Removable Bezel
No
Cleaned for Oxygen Service
No
Includes Vent Plug
No
Sensor Material
Copper Alloy
Dry Dampening Feature
None
Primary Scale Minor Graduations
0.1
Pressure Gauge Type
Low Pressure Gauge
Gauge Case Liquid
None
Process Connection Gender
Male
Adjustable Pointer
No
Pressure Range Type
Pressure
Operating Temperature Range
-40 Degrees to 160 Degrees F

Description

Low Pressure Gauge, Accuracy +/-2.5 Percent, Gauge Case Material Steel, Nominal Dial Size 2 1/2 in, Lens Material Polycarbonate, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Copper Alloy, Socket Material Copper Alloy HPb59-1, Sensor Type Diaphragm, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Low Pressure Gauge

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
