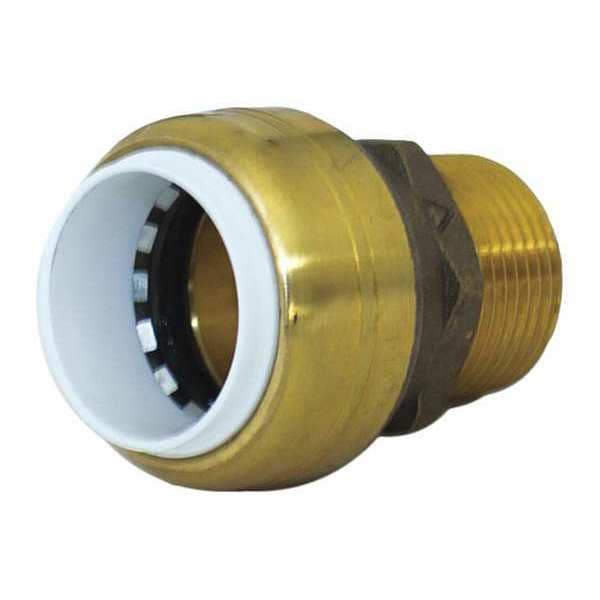

Male Adapter, 3/4" Tube Size, Brown

  • Mfr # UIP134

  • Zoro # G2101200


product price: $12.79
/ea

Key Features

Tube Fitting Material
DZR Brass
Specific Fitting Shape
Male Adapter
Fitting Connection Type
Push-Fit
Tube Size
3/4"
Pipe Size - Pipe Fitting
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UIP134
Zoro #
G2101200
UPC #
697285021235
Country of Origin
China

Dimensions

Tube Size
3/4"
Pipe Size - Pipe Fitting
3/4 in
Fitting Length
1.97 in
Pipe Size (Fittings)
3/4"
Outside Dia.
3/4 in
Pipe Fitting Length
1.97"
Pipe Size
3/4"
Fitting Side C Nominal Pipe Size
3/4 in
Fitting Side 2 Pipe Size
3/4 in
Fitting Side 1 Pipe Size
3/4 in

Details

Item
Push-Fit Adapter Fitting
Tube Fitting Material
DZR Brass
Specific Fitting Shape
Male Adapter
Fitting Connection Type
Push-Fit
Max. Pressure
200 psi
Pipe Fitting Material
Brass
Fittings Sub-Category
Couplings
Basic Pipe Fitting Material
Metal
Max. Temp.
200 Degrees F
Temp. Range
32-200 Degrees F
Color
Brass
Pipe Fitting Connection Type
Push-To-Connect
Compliance
IAMPO, NSF, UPC
Specific Pipe Fitting Shape
Adapter
Number of Holes
2
Basic Pipe Fitting Shape
Adapter
Standards
IAPMO, NSF/ANSI 372, NSF/ANSI/CAN 61
Fitting Material
Brass
For Pipe Schedule
Schedule 120, 40, 80
Fitting Side C Gender
Male
Fitting Side A Type
Push-Fit
Low Lead Certified Standard
YES
Max. Steam Pressure
200 psi
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Low Lead Compliance Level
Certified
Finish/Coating
Brass
Seal Material
EPDM O-Ring
Fitting Side B Gender
Male
Fitting Side B Type
NPT
Fitting Side B Pipe Threading
12
Material Grade
316
Release Ring Material
EPDM
Fitting Shape
Straight
Fitting Side 1 Connection Type
Push-to-Connect
Connector Type
Adapter
Fitting Side 2 Connection Type
NPT

Description

Push-Fit Adapter Fitting, Fitting Material Brass, Material Grade 316, Color Brass, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Specific Fitting Shape Male Adapter, Standards IAPMO, NSF/ANSI 372, NSF/ANSI/CAN 61, Finish/Coating Brass, Release Ring Material EPDM

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
