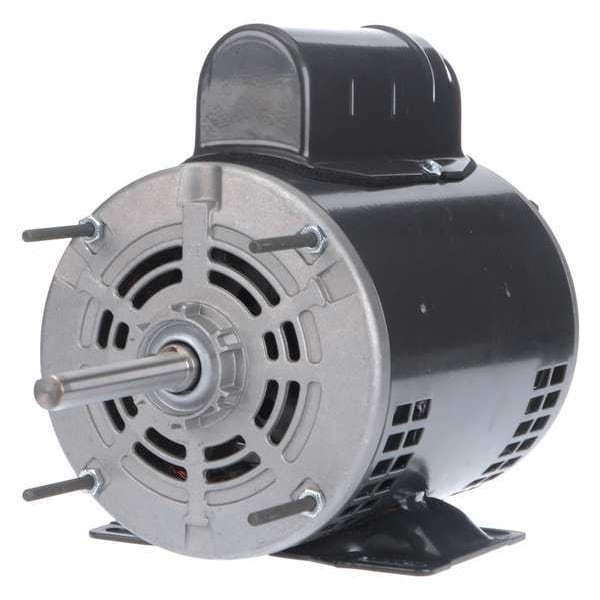

Motor, PSC, 1/2 HP, 1725,115/230V, 48Z, OAO

  • Mfr # 4YU28
  • Zoro # G0882253
product price:
$
324.99
/ea
Free Shipping & Returns

Key Features

Application
Fan/Blower
Motor Design
Permanent Split Capacitor
Bolt Circle Dia.
5 1/8 in
Motor Bearings
Ball
Duty
Continuous
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU28
Zoro #
G0882253
UPC #
190735339145
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
5 1/8 in
Length Less Shaft
8 3/8 in
Stud Size
#10-32
Body Dia.
5 5/8 in
Shaft Length
3 in
Shaft Dia.
1/2 in
Frame Size
48Z
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/8 in
Overall Length
11 3/32 in
Mounting Stud Thread Size
#10-32
Wire Rope Length
11 3/32 in
Length
11 3/32 in

Details

Application
Fan/Blower
Motor Design
Permanent Split Capacitor
Motor Bearings
Ball
Duty
Continuous
Replacement For
16D536, 16D537, 4YC69, 4YC71, 5DVP8, 5DVP9
Motor Service Factor
1
Phase
Single
Motor Enclosure Design
Open Air-Over
Capacitor Required
Capacitor Included
Motor Mounting Position
All Angle
Frame
48Z
No. of Speeds
1
Mounting Stud Pattern
3 5/8 in
Ins. Class
B
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Full Load Amps
6.0/3.0 A
RPM Range
1,701-1,800
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Shaft Design
Flat
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Nameplate RPM
1,725
Item
Fan and Blower Motor
Standards
CSA Certified, UL Recognized
Motor Sub Application
Direct Drive
Voltage
115/230V AC
Motor Mounting Type
Rigid Base
HP
1/2
Max. Ambient Temp.
40 Degrees C
Mounting Stud Location
4/Shaft End
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Number of Shafts
1
Stud Quantity
4
Mounting Holes
(4) #10-32
Duty Cycle
Continuous
Includes
Capacitor
Conduit Box Position
F3
Mounting
Rigid Base/Stud
Number of Speeds
1
Frame Material
Steel
Drive Type
Direct Drive
Mounting Position
All Angle
Shaft Design
Flat
Sub Application
Ventilator
Insulation Class
B
Frequency
60 Hz
Motor Enclosure Type
Open Air Over
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Product Type
Fan and Blower Motor
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
6.0/3.0 A

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 6.0/3.0 A Full Load Amps, 48Z Frame, 60 Hz Hz, Replacement For 16D536, 16D537, 4YC69, 4YC71, 5DVP8, 5DVP9, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW
