Shop FASCO

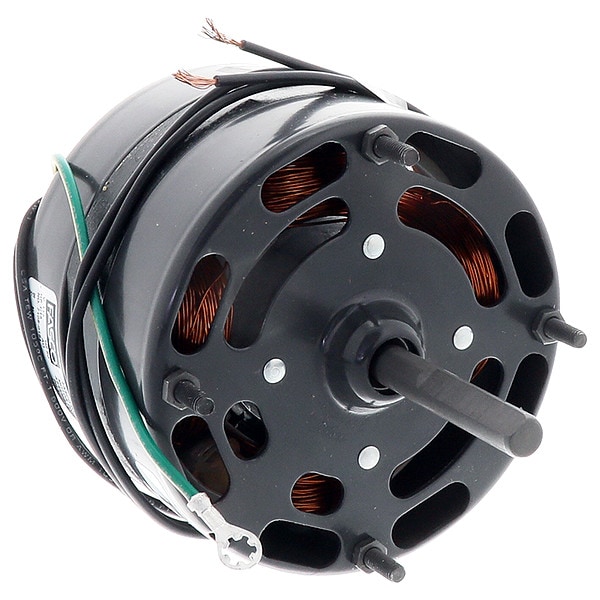

Motor, 1/15HP 115V 1500RPM Cw, 1/15 hp

  • Mfr # D116

  • Zoro # G3208657

product price:
$
155.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Shaded Pole
Phase
1
HP
1/10 HP
RPM Range
1,401-1,500
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D116
Zoro #
G3208657
UPC #
-
Country of Origin
Mexico
Item
Motor
Motor Design
Shaded Pole
Phase
1
HP
1/10 HP
RPM Range
1,401-1,500
No. of Speeds
1
Voltage
115V
Motor Shaft Rotation
Counterclockwise Shaft End
Frame
4.4
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Thermal Protection
Included
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1500 rpm
Motor Application
OEM Replacement
Motor Sub Application
Fan and Blower Motor
Voltage Compatibility
115V AC
Motor Bearings
Sleeve
Standards
UL Recognized, CSA Certified
Ins. Class
A
Number of Shafts
1
Application
Fan and Blower
Motor Service Factor
1
Hz
60 Hz
Motor Shaft Design
Flat
Full Load Amps
2.4 A
Duty
Air Over
Mounting Stud Location
Shaft End
Weight
5.2 lb
Usable @ 208V
No
Usable @ 200V
No
Product Type
Fan and Blower Motor
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Insulation Class
A
Number of Speeds
1
Motor Enclosure Type
Open Air Over
Compatible Brand
Regal Rexnord - Fasco
Bearing Type
Sleeve
Capacitor Required
Capacitor Not Required
Full Load Current @ 60 Hz
2.4 A

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2.4 A, 4.4 Frame, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
