  11. NEMA 20A 4-3/16" H x 1-3/4" W x 1-1/8" D Power Inlet
Zoro Select NEMA 20A 4-3/16" H x 1-3/4" W x 1-1/8" D Power Inlet 2097TRW - main

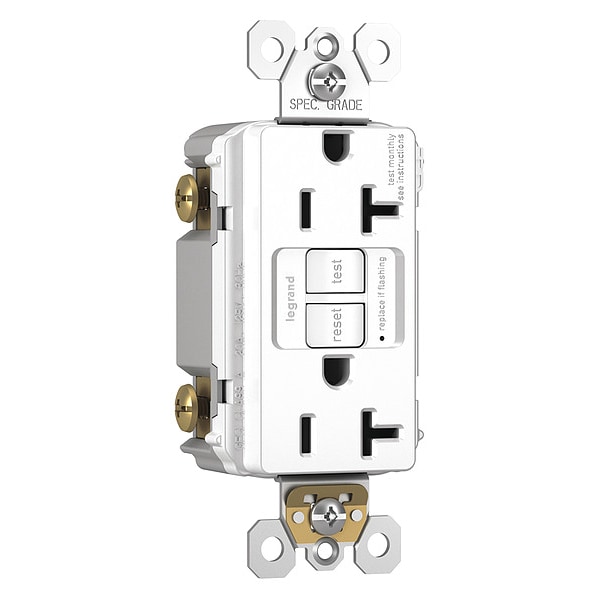

NEMA 20A 4-3/16" H x 1-3/4" W x 1-1/8" D Power Inlet

  • Mfr # 2097TRW

  • Zoro # G8039395

product price: $29.49
/ea

Key Features

Current Rating
20 A
GFCI
Yes
Housing Material
Thermoplastic
Mounting Type
Box
NEMA Receptacle Configuration
5-20R
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2097TRW
Zoro #
G8039395
UPC #
-
Country of Origin
China

Dimensions

Height
4-3/16"
Depth
1-1/8"
Width
1-3/4"
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in
Face Plate Height
2.7 in
Overall Depth
1 in
Minimum Wire Size
14 AWG

Details

Item
Power Inlet
Current Rating
20 A
GFCI
Yes
Housing Color
White
Housing Material
Thermoplastic
Mounting Type
Box
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Standards
cULus Listed, FSUL, UL Listed
Amps
20
Indoor/Outdoor
Indoor
Number of Outlets
2
Color
White
Voltage
125VAC
Receptacle Type
GFCI
Reset Type
Automatic
Voltage Rating
125V AC
Self Testing
Yes
For Environment
Institutional
Includes Mounting Hardware
Yes
Compatible with Series
Radiant(R)
Minimum Operating Temperature
-31 Degrees F
Number of Wall Plates Included
2
IEC Configuration
309
Maximum Operating Temperature
150.8 Degrees F
Contact Material
Brass
Wire Connection Type
Screw Terminals
Grade
Federal Specification
Maximum Surge Current
6 mA
For Location
Outdoor
Market
Industrial
Hub Type
Feed Through
UL 94 Flammability Rating
V-2
Resistance Properties
Tamper Resistant
Number of Gangs
1
Number of Receptacles
2
Amperage
20.0 A
Outlet Type
Tamper-Resistant,Self-Test,GFCI,Indoor
NEMA Rating
20A
NEMA Configuration Code
5-20R
Environmental Conditions
95% Humidity, UL 94 V2
Special Features
Spec Grade
Finish
Matte

Description

Power Inlet, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Plastic, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards cULus Listed, FSUL, UL Listed, Voltage Rating 125V AC
