  11. NSF-Listed Plate Caster, 1200 lb. Ld Rating, Roller

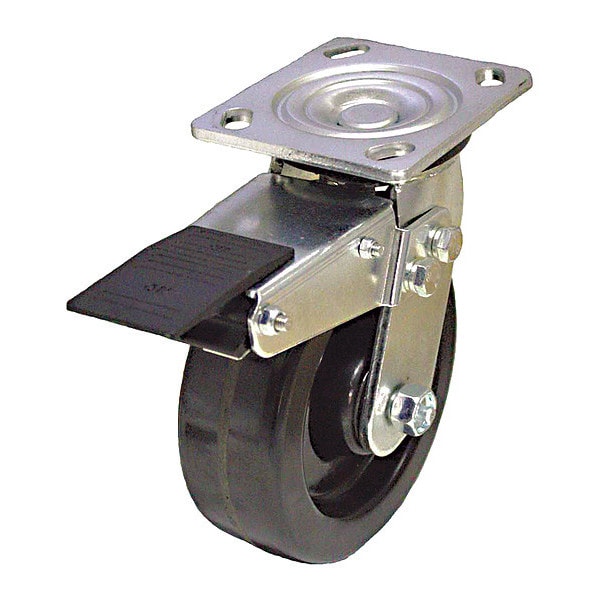

Zoro Select NSF-Listed Plate Caster, 1200 lb. Ld Rating, Roller P21S-PH060R-14-TB - main

NSF-Listed Plate Caster, 1200 lb. Ld Rating, Roller

  • Mfr # P21S-PH060R-14-TB

  • Zoro # G7278299

product price: $58.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Total Lock
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-PH060R-14-TB
Zoro #
G7278299
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2in
Swivel Radius
5 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Bolt Hole Spacing - Length
2.625 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Total Lock
Load Rating
1200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
Rockwell 102E
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Wheel Color
Black
Replacement Wheel
Mfr. No. P-PH-060x020/050R
Frame Finish
Zinc Plated
Standards
RoHS, ICWM, NSF
Extended Lead
No
Thread Guards
No
Features
Floor Protective
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial
Includes
Total-Lock
Swivel Construction
Kingpin
Load Rating Range
Medium-Duty
Wheel Core Material
Phenolic
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Swivel Lock Type
Total Lock
Tread Color
Black
ESD Conductive
No
Series
P21 Series
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1200 lb
Load Capacity - Maximum
1,200 lb
Compatible With
P-PH-060X020/050R
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Brake Location
Rear
Wheel Core Type
Solid
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-40 Degrees To 250 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type Total Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
