  6. NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller

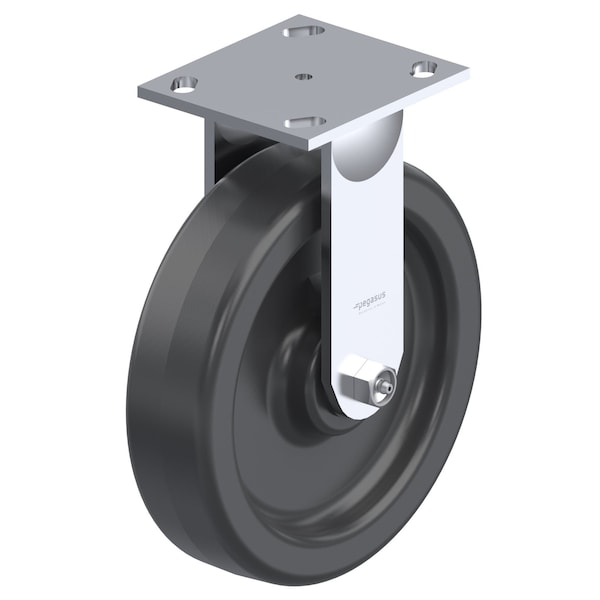

Zoro Select NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller P21R-PH080R-14 - main

NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller

  • Mfr # P21R-PH080R-14

  • Zoro # G7279778

product price:  $37.75
/ea

Key Features

Mounting Bolt Dia.
3/8 in
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Thread Guards
No
Load Rating
1250 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-PH080R-14
Zoro #
G7279778
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Swivel Radius
None- Rigid Caster
Overall Height
9-1/2in
Wheel Width
2 in
Wheel Dia.
8 in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
9 1/2 in
Mounting Plate Thickness
1/4in
Hub Length
2 3/16 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in
Bolt Hole Spacing - Length
2.625 in
Outside Slot Spacing - Width
3 in

Details

Frame Finish
Zinc Plated
Standards
ANSI ICWM
Thread Guards
No
Load Rating
1250 lb
Number of Wheels
1
Caster Temp. Range Available
Yes
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Extended Lead
No
Inside Bolt Hole Spacing
3 in x 3 in
Features
Low Rolling Resistance
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Brake Included
No
Item
Rigid Caster
Wheel Color
Black
Caster Plate Hole Pattern
B
Replacement Wheel
489D68
Non-Marking
Yes
Core Color
Black
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Hard
Tread Shape
Standard
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Phenolic
Load Rating Range
Medium-Duty
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Load Capacity
1250 lb
Frame Construction
Stamped
Wheel Bearing Material
Steel
NSF Listed
No
Tread
Standard
Includes Spanner Bushing
Yes
Caster Mounting Type
Plate
Includes Mounting Fasteners
No
Swivel Bearing Seal Type
Open
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Wheel Core Type
Solid
Operating Temperature Range
-40 Degrees To 250 Degrees F
Frame Color
Silver
ESD Conductive
No
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
With Toe Plate
No
Series
Pegasus 21 Series
Tread Color
Black
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Compatible With
P-PH-080X020/050R
Load Capacity - Maximum
1,250 lb
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
Rockwell 102E
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
