  6. Swivel NSF-Listed Plate Caster, 600 lb., Ball

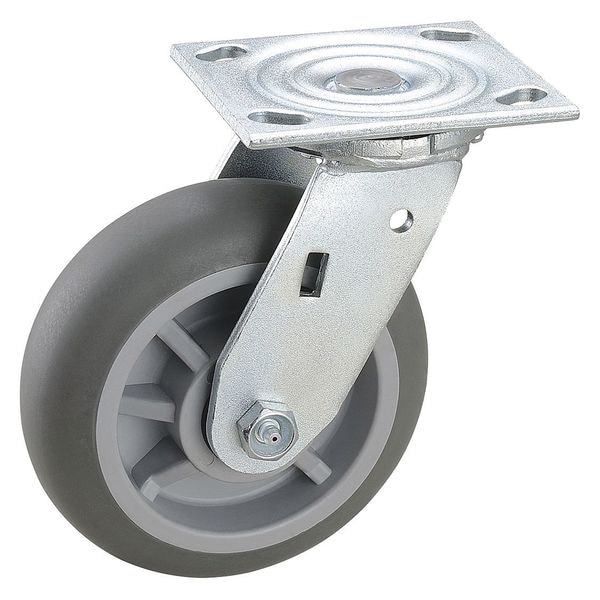

Zoro Select Swivel NSF-Listed Plate Caster, 600 lb., Ball 2LY30 - main

Swivel NSF-Listed Plate Caster, 600 lb., Ball

  • Mfr # 2LY30

  • Zoro # G1854885

product price:  $21.15
/ea

Key Features

Replacement Wheel
Mfr. No. XR0622808G
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Included
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2LY30
Zoro #
G1854885
UPC #
190735899335
Country of Origin
China

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Overall Height
7-1/4in
Wheel Dia.
6 in
Mounting Height
7 1/4 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Replacement Wheel
Mfr. No. XR0622808G
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Included
No
Thread Guards
No
Caster Frame Material
Steel
Non-Marking
Yes
Caster Stem Type
No Stem/Plate Included
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Gray
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Wheel Color
Gray
Load Rating
600 lb
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
B
Extended Lead
No
Number of Wheels
1
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Item
Plate Caster
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Load Rating Range
300 to 999 lb
Tread Shape
Donut
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Polyolefin
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Wheel Hardness Rating
75 Shore A
Compatible With
XR0622808G
Load Capacity - Maximum
600 lb
Operating Temperature Range
-45 Degrees to 180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
