  11. NSF-Listed Plate Caster, 175 lb. Ld Rating, Delrin
Zoro Select NSF-Listed Plate Caster, 175 lb. Ld Rating, Delrin P12S-R050D-12 - main

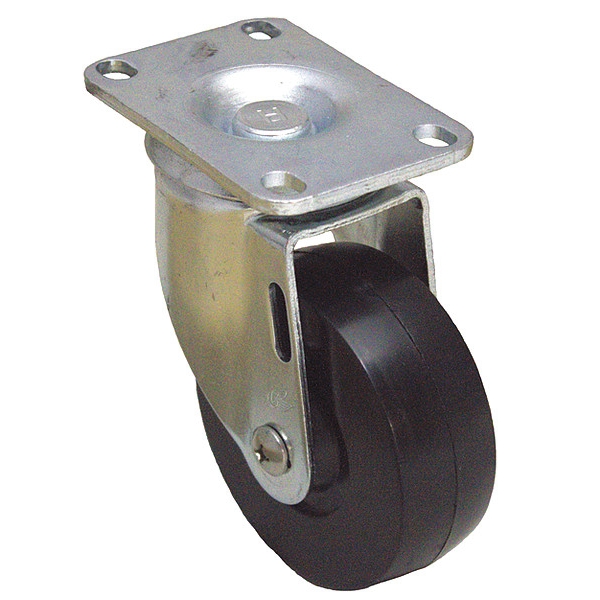

NSF-Listed Plate Caster, 175 lb. Ld Rating, Delrin

  • Mfr # P12S-R050D-12

  • Zoro # G1620471

product price: $18.99
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12S-R050D-12
Zoro #
G1620471
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 3/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Swivel Radius
4 in
Overall Height
6-3/16in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Length
2.813 in
For Axle Dia.
3/8 in
Mounting Plate Length
2 1/2 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
175 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Delrin
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Replacement Wheel
Mfr. No. P-R-050x013/038D
Caster Brake Included
No
Caster Temp. Range Available
Yes
Extended Lead
No
Thread Guards
No
Features
Noise Reduction
Frame Finish
Zinc Plated
Standards
RoHS, ICWM, NSF
Application
Retail, Industrial, Commercial
Wheel Color
Black
Wheel Core Material
Rubber
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Load Rating Range
Light-Duty
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Tread
Standard
Tread Color
Black
Series
P12 Series
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
175 lb
ESD Conductive
No
Compatible With
P-R-050X013/038D
Load Capacity - Maximum
350 lb
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Delrin
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Operating Temperature Range
-20 Degrees To 125 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
