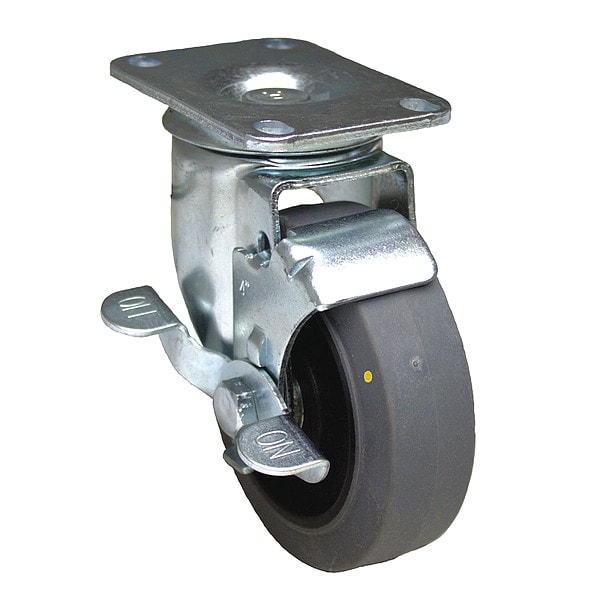

Zoro Select Plate Caster, 200 lb. Load Rating P12S-PRP030B-12-WB-EL - main

Plate Caster, 200 lb. Load Rating

  • Mfr # P12S-PRP030B-12-WB-EL

  • Zoro # G1626044

product price:  $24.79
/ea

Key Features

Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Frame Finish
Zinc Plated
Wheel Width
1 1/4 in
Core Color
Gray
Replacement Wheel
Mfr. No. P-PRP-030X013/038B
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-PRP030B-12-WB-EL
Zoro #
G1626044
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Swivel Radius
None- Rigid Caster
Wheel Dia.
3 in
Overall Height
4-1/4in
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
4 3/16 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in
For Axle Dia.
3/8 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
2 1/2 in
Mounting Plate Thickness
1/8in

Details

Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Frame Finish
Zinc Plated
Core Color
Gray
Replacement Wheel
Mfr. No. P-PRP-030X013/038B
Caster Frame Material
Steel
Non-Marking
Yes
Extended Lead
No
Load Rating
200 lb
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Sub-Type
Swivel
Caster Brake Type
Side Brake
Thread Guards
No
Caster Plate Hole Pattern
C
Caster Temp. Range Available
Yes
Features
Electrically Conductive, Floor Protection, Noise Reduction
Standards
DIN EN 12530
Number of Wheels
1
Includes
Wheel Brake
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Wheel Color
Gray
Item
Swivel Caster with Brake
Caster Brake Included
Yes
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polypropylene
Load Rating Range
Light-Duty
Wheel/Tread Material
Thermoplastic Rubber
Tread Shape
Standard
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel/Tread Color
Gray
System of Measurement
Inch
ESD Conductive
Yes
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Gray
Load Capacity
200 lb
Tread
Standard
Series
P12 Series
Caster Mounting Type
Plate
Wheel Hardness Rating
90 Shore A
Compatible With
P-PRP-030X013/038B
Load Capacity - Maximum
200 lb
Wheel Core Type
Solid
Caster Features
Debris-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Brake Location
Side
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
