  11. NSF-Listed Plate Caster, 2200 lb. Ld Rating, Roller, PK4

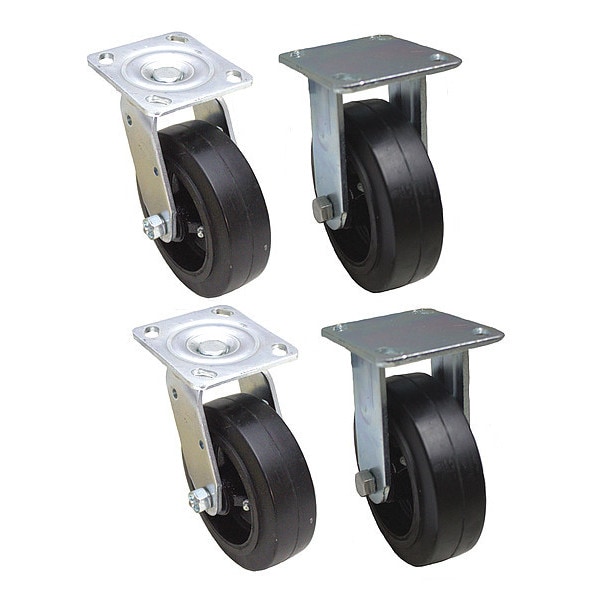

Zoro Select NSF-Listed Plate Caster, 2200 lb. Ld Rating, Roller, PK4 P21-RY060R-14-SET - main

NSF-Listed Plate Caster, 2200 lb. Ld Rating, Roller, PK4

  • Mfr # P21-RY060R-14-SET

  • Zoro # G7279531

product price: $104.99
/pk 4, $26.25/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid, Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21-RY060R-14-SET
Zoro #
G7279531
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5 in
Overall Height
7-1/2in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in

Details

Item
Plate Caster Kit
Caster Sub-Type
Rigid, Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
2200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Replacement Wheel
Mfr. No. P-RY-060x020/050R
Extended Lead
No
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM, NSF
Thread Guards
No
Wheel Color
Black
Caster Temp. Range Available
Yes
Includes
(2) Rigid, (2) Swivel
Frame Finish
Zinc Plated
Caster Brake Included
No
Features
Noise Reduction
Includes Thread Guards
No
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Medium Duty
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Soft
Load Capacity
550 lb
Series
P21 Series
Tread
Standard
Tread Color
Black
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity - Maximum
2,000 lb
Compatible With
P-RY-060X020/050R
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Wheel Core Type
Spoke
Operating Temperature Range
-40 Degrees To 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Rigid, Swivel, Plate Casters, Load Rating 2200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard, Package Quantity 4
