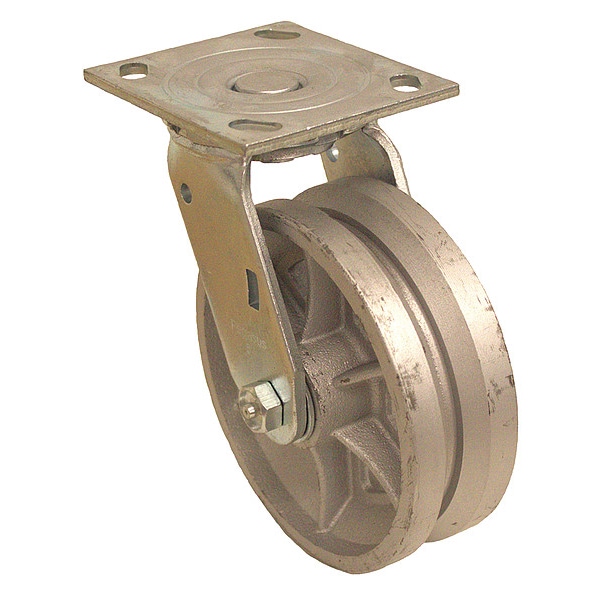

Plate Caster, 800 lb. Load Rating

  • Mfr # P21S-C040R-14-VG1
  • Zoro # G5780417
product price:
$
47.29
/ea

Key Features

Core Color
Silver
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-C040R-14-VG1
Zoro #
G5780417
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Overall Height
5-5/8"
Wheel Dia.
4 in
Swivel Radius
3 3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Recommended Track Size
1-1/2 in x 1-1/2 in; 1/4 in x 1/4 in
Mounting Height
5 5/8 in
Mounting Plate Thickness
7/32 in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in

Details

Core Color
Silver
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Thread Guards
No
Caster Plate Hole Pattern
B
Non-Marking
Yes
Caster Temp. Range Available
Yes
Caster Brake Included
No
Inside Bolt Hole Spacing
3 in x 3 in
Features
Angle Track Compatible
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Load Rating
700 lb
Frame Finish
Zinc Plated
Extended Lead
No
Caster Sub-Type
Swivel
Wheel Color
Silver
Standards
DIN EN 12532
Item
Plate Caster
Replacement Wheel
Mfr. No. P-C-040X020/050R-VG1
Caster Brake Type
No Brake
Wheel Bearing Type
Roller
Includes Thread Guards
No
Clearance on 1-1/2" Track
5/8 in
Swivel Construction
Kingpin
Wheel Core Material
Iron
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Iron
Tread Shape
V-Groove
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
No Lock Included
Load Rating Range
Medium Duty
Clearance on 1-1/4" Track
7/16 in
Number of Mounting Holes
4
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Accessories
Optional: P-DL21-14 (Directional Lock) (Directional Lock)
Series
P21 Series
Tread
Standard
Tread Color
Silver
Caster Mounting Type
Plate
Load Capacity
700 lb
Load Capacity - Maximum
700 lb
Compatible With
P-C-040X020/050R-VG1
Wheel Core Type
Solid
Wheel Hardness Rating
145 HB
Mounting Plate Shape
Rectangle
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Operating Temperature Range
Up To 800 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
