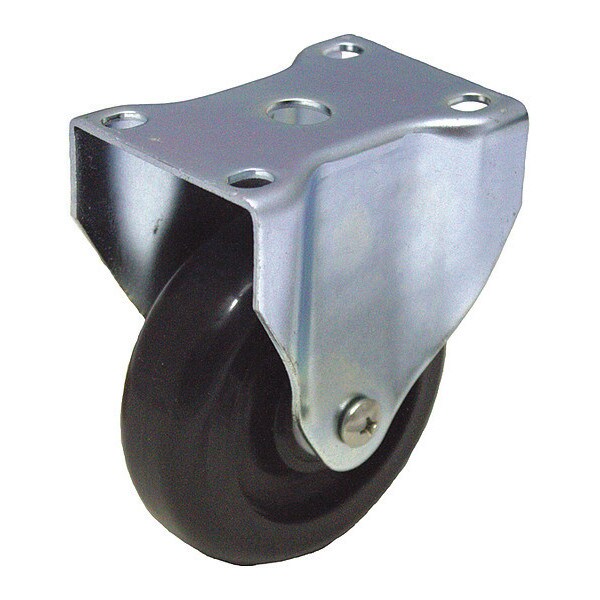

NSF-Listed Plate Caster, 275 lb. Load, Black Wheel

  • Mfr # P12R-PB040D-P2

  • Zoro # G1625694

product price:
$
7.59
/ea

Key Features

Caster Brake Type
No Brake
System of Measurement
Inch
Replacement Wheel
Mfr. No. P-PB-040c013/038D
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12R-PB040D-P2
Zoro #
G1625694
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Overall Height
5-1/8"
Wheel Dia.
4 in
Mounting Height
5 1/8 in
Mounting Plate Size
3-1/8in x 4-1/8in
Inside Slot Spacing - Length
3.375 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Width
2.375 in
Mounting Plate Thickness
5/32 in
Overall Wheel Width
1 1/4 in
Mounting Plate Length
3 1/8 in
Outside Slot Spacing - Length
3.5 in
Outside Slot Spacing - Width
2.375 in

Details

Caster Brake Type
No Brake
System of Measurement
Inch
Replacement Wheel
Mfr. No. P-PB-040c013/038D
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Wheel Color
Black
Core Color
Black
Non-Marking
Yes
Caster Frame Material
Steel
Number of Wheels
1
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Includes
Complete Caster
Caster Sub-Type
Rigid
Caster Brake Included
No
Features
Push/Pull Force Reduction
Frame Finish
Zinc Plated
Load Rating
275 lb
Thread Guards
No
Standards
ANSI ICWM, NSF Listed
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Caster Plate Hole Pattern
C
Item
Plate Caster
Extended Lead
No
Tread Shape
Standard
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Delrin
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Duty
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
Series
P12 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
275 lb
Tread Color
Black
Tread
Standard
Caster Mounting Type
Plate
ESD Conductive
No
Wheel Hardness Rating
60 Shore D
Load Capacity - Maximum
275 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Delrin
Caster Features
Corrosion-Resistant, Maintenance Free
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature Range
-20 Degrees To 180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
