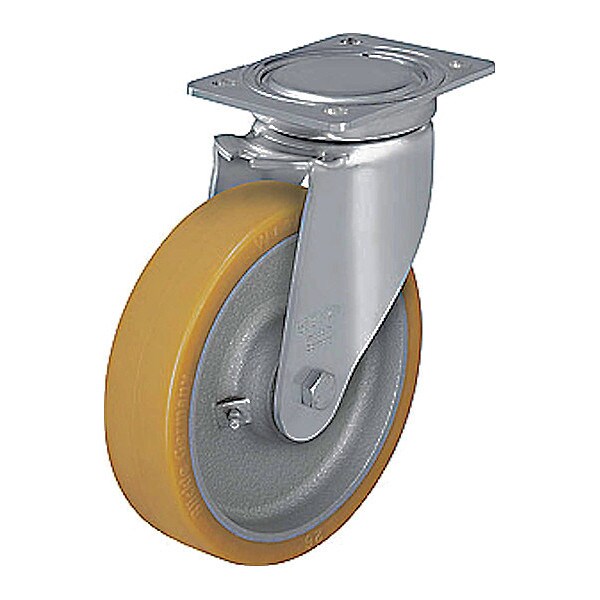

Plate Caster, 1650 lb. Ld Rating, Ball

  • Mfr # LU-GTH 160K
  • Zoro # G9463662
product price:
$
199.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Brake Type
No Brake
Wheel Width
2 in
Mounting Height
8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LU-GTH 160K
Zoro #
G9463662
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2 in
Mounting Height
8 in
Mounting Plate Size
110 mm x 140 mm
Mounting Plate Thickness
3/16 in
Mounting Bolt Dia.
7/16 in
Swivel Radius
5 1/2 in
Wheel Dia.
6 in
Overall Height
7-61/64"
Mounting Plate Width
110 mm
Inside Slot Spacing - Width
75 mm
Outside Slot Spacing - Width
80 mm
Mounting Plate Length
140 mm
Overall Wheel Width
2 in
For Axle Dia.
12 mm
Fits Chest Size
Floor Protective

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Brake Type
No Brake
Load Rating
1650 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Caster Plate Hole Pattern
C
Thread Guards
No
Caster Brake Included
No
Inside Bolt Hole Spacing
2-15/16 in x 4-1/8 in
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Standards
DIN EN 12532, ANSI ICWM
Extended Lead
No
Frame Finish
Zinc Plated
Features
Floor Protective
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. GTH 160/20K
Wheel Color
Yellow
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Iron
Tread Shape
Standard
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Load Rating Range
Medium Duty
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
Tread Color
Light Brown
Load Capacity
750 kg
Tread
Standard
Series
LU Series
Accessories
Optional: RI-05.03 (Directional Lock)
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Compatible With
GTH 160/20K
Load Capacity - Maximum
1,765 lb
Wheel Hardness Rating
92 Shore A
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Maintenance Free
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 1650 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
