  6. NSF-Listed Plate Caster, 275 lb. Load, Black Wheel

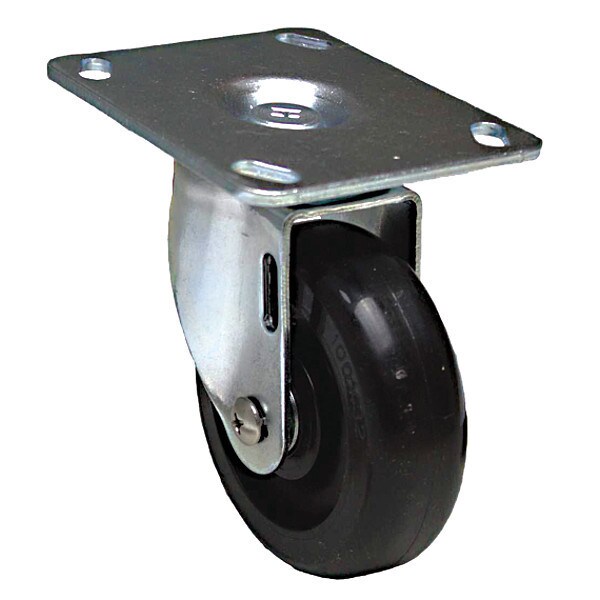

Zoro Select NSF-Listed Plate Caster, 275 lb. Load, Black Wheel P12S-PB040D-P3 - main

NSF-Listed Plate Caster, 275 lb. Load, Black Wheel

  • Mfr # P12S-PB040D-P3

  • Zoro # G1617714

product price:  $11.25
/ea

Key Features

Standards
ANSI ICWM, NSF Listed
Overall Height
5-1/8in
Number of Wheels
1
Mounting Bolt Dia.
5/16 in
System of Measurement
Inch
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-PB040D-P3
Zoro #
G1617714
UPC #
-
Country of Origin
China

Dimensions

Overall Height
5-1/8in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-1/4 in
Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 1/8 in
Mounting Plate Size
3-3/4in x 4-3/8in
Overall Wheel Width
1 1/4 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Width
3 3/4 in
Mounting Plate Thickness
1/8in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 3/8 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
3/8 in

Details

Standards
ANSI ICWM, NSF Listed
Number of Wheels
1
System of Measurement
Inch
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Wheel Color
Black
Replacement Wheel
Mfr. No. P-PB-040x013/038D
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Rating
275 lb
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Extended Lead
No
Item
Swivel Caster
Caster Brake Type
No Brake
Inside Bolt Hole Spacing
3 in x 3 in
Thread Guards
No
Includes
Complete Caster
Caster Temp. Range Available
Yes
Core Color
Black
Caster Brake Included
No
Non-Marking
Yes
Caster Frame Material
Steel
Features
Push/Pull Force Reduction
Caster Sub-Type
Swivel
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Plain
Tread Shape
Standard
Wheel Core Material
Polypropylene
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Tread Color
Black
Load Capacity
275 lb
Series
P12 Series
Caster Mounting Type
Plate
Wheel Hardness Rating
65 Shore D
Load Capacity - Maximum
275 lb
Caster Features
Corrosion-Resistant, Maintenance Free
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Delrin
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Operating Temperature Range
-20 Degrees To 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
