  11. NSF-Listed Plate Caster, 275 lb. Load Rating, Rigid
Shop All Plate Casters
Zoro Select

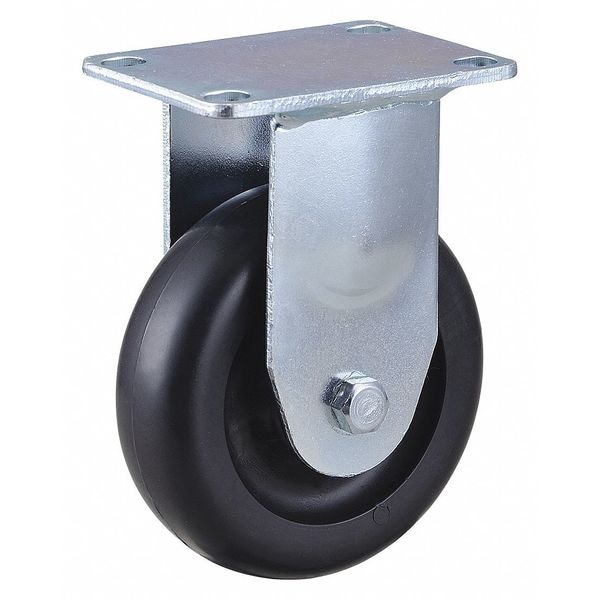

NSF-Listed Plate Caster, 275 lb. Load Rating, Rigid

product price: $5.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Rigid
  • Caster Wheel Shape Crown
  • Caster Wheel/Tread Material Polyolefin
See all product information

Product Information

Dimensions

Overall Height 5-3/16"
Wheel Dia. 4 in
Wheel Width 1 1/4 in
Mounting Bolt Dia. 5/16 in
Caster Plate Size 2-1/2" x 3-5/8"
Plate Size 2-1/2" x 3-5/8"
Mounting Height 5 3/16 in
Mounting Plate Size 2 1/2 in x 3 5/8 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Duty
Caster Sub-Type Rigid
Caster Wheel Shape Crown
Caster Wheel/Tread Material Polyolefin
Load Rating 275 lb
Number of Wheels 1
Caster Min. Temp. -20 Degrees F
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Frame Material Steel
Caster Frame Material Steel
Replacement Wheel 4W915
Caster Plate Hole Pattern C
Core Color Black
Caster Temp. Range -20 Degrees to 180 Degrees F
Application General Purpose
Caster Max. Temp. 180 Degrees F
Frame Finish Zinc Plated
Caster Wheel Bearings Delrin
Caster Core Material Polyolefin
Caster Product Group Rigid Caster
Plate Thickness 5/32"
Plate Caster Bolt Hole Pattern C
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Caster Plate Thickness 5/32"
Item NSF-Listed Sanitary Plate Caster
Durometer 70 Shore D
Non-Marking Yes
Thread Guards No
Wheel Color Black
Standards NSF Listed
Caster Temp. Range Available Yes
Extended Lead No
Caster Swivel Lock Type No Lock Included
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Wheel/Tread Hardness Rating Hard
Wheel Core Material Plastic
Wheel Bearing Type Delrin
Mounting Plate Bolt Hole Pattern C
Number of Mounting Holes 4
Tread Shape Standard
Includes Thread Guards No
Swivel Construction Kingpinless
Load Rating Range 0 to 299 lb
Wheel/Tread Hardness 65 Shore D
Wheel/Tread Material Polyolefin
Wheel/Tread Color Black

Description

Rigid, NSF-Listed Sanitary Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
